Routing W/AC

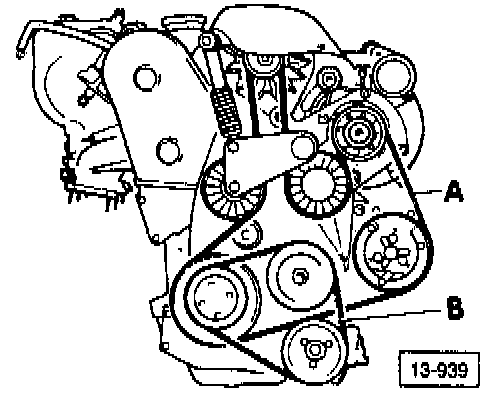

Belt Routing, Vehicles With Air Conditioning




A - Ribbed belt for: Generator, G-charger and air conditioning compressor
B - Vee belt for: water pump and power steering pump





1 - Ribbed belt pulley - Generator
2 - Ribbed belt
- 21.36 mm wide x 1755 mm circumference (0.84 in. wide x 69.0 in. circumference)
3 - Ribbed belt pulley - G-charger.
4 - Ribbed belt tensioning pulley
5 - Ribbed belt idler pulley
6 - Ribbed belt pulley - A/C compressor
7 - Vee belt pulley - Water pump
8 - Combination vee belt and ribbed belt pulley - crankshaft
9 - Vee belt
- 9.5 mm wide x 735 mm circumference (0.37 in. wide x 28.9 in. circumference)
- arrow = tension checking point
10 - Vee belt pulley - Power steering pump
