Corrado L4-1781cc 1.8L SOHC SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Cooling System
>>
Radiator, Cooling Fan, Assembly

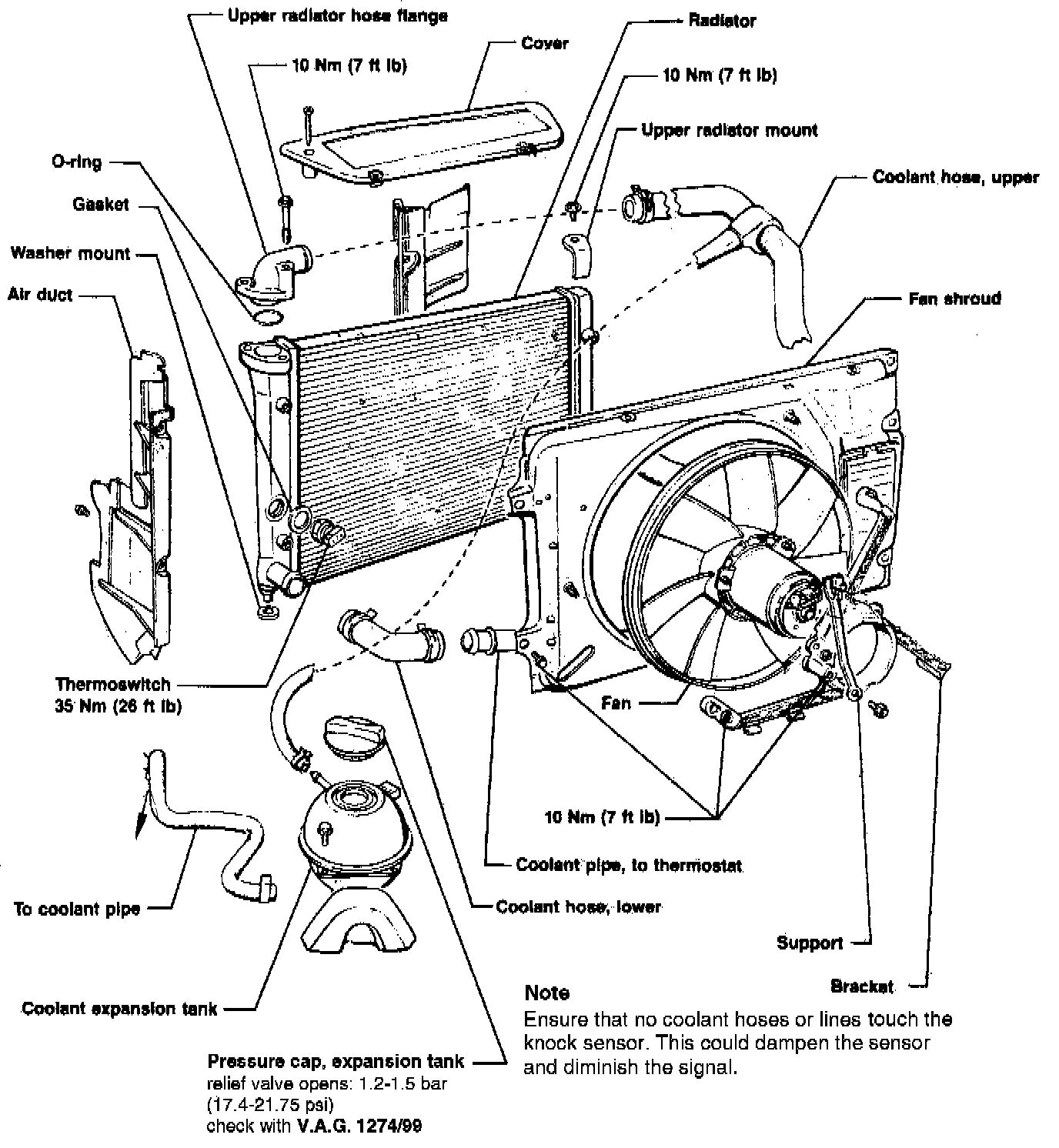

Radiator, Cooling Fan, Assembly
Radiator, Cooling Fan, Assembly:
