Removing and Installing Headliner Trim Frame

- Remove slide/tilt sunroof panel. Removing and Installing Sunroof Panel

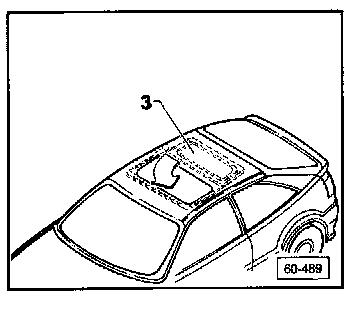

- Slightly raise headliner trim frame 3, rotate 90° (1/4 turn), and remove from roof cutout from front.

- Install headliner trim frame in reverse order of removal.
