Intake Valve Seat, Refacing



Intake Valve Seat, Refacing

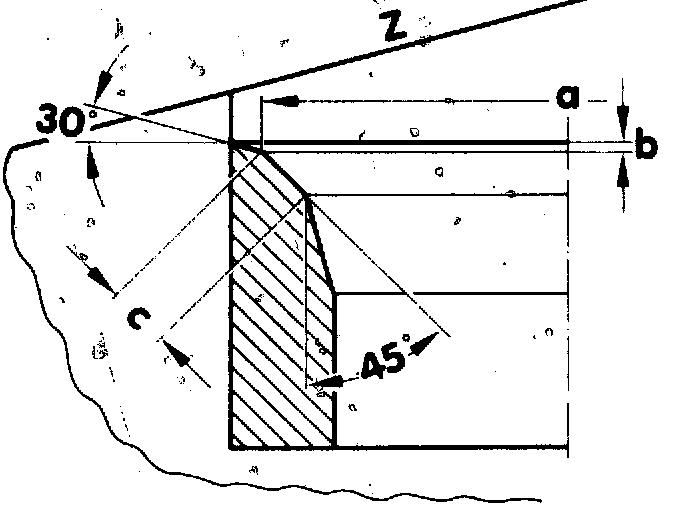

a = Diameter 31.2 mm

b = Maximum permissible refacing dimension

c = 1.5 to 1.8 mm

- If necessary, rework valve seat using a 75° cutter

z = Cylinder head lower edge

45° = Valve seat angle

30° = Upper correcting angle
