Transmission / Final Drive, Separating Pump Shaft

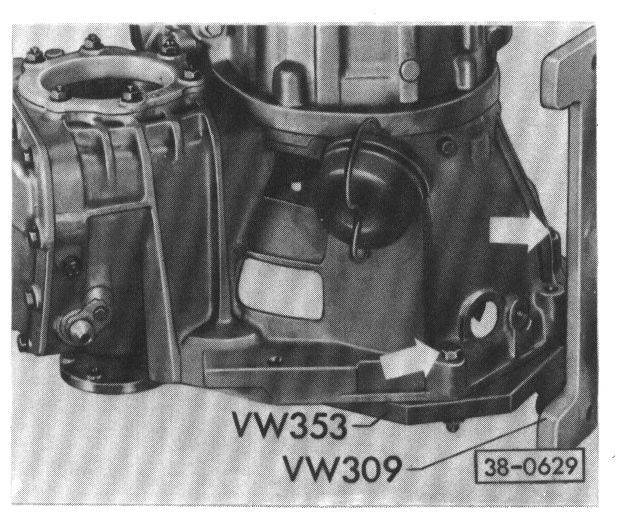

Fig. 1 Transmission/Final drive, separating
- mount case on fixture as shown (arrows)
- drain oil from final drive
- remove governor (if installed)
- turn transmission so ATF cannot leak out
- remove transmission

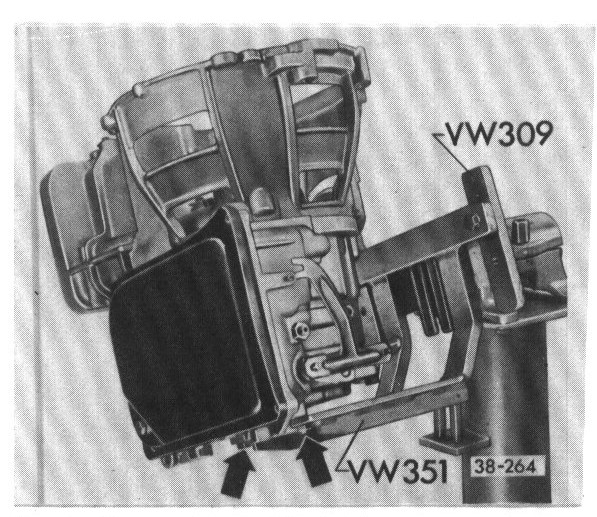

Fig. 2 Transmission/Final drive, separating
- mount transmission/final drive assembly as shown (arrows)
- drain ATF
- remove final drive

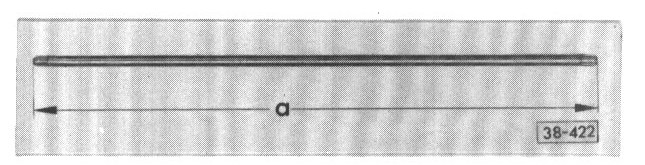

Fig. 3 Pump shaft length
- a = 319 mm (12.559 in.)
Different lengths of shafts are available.
Check dimension a before installing.

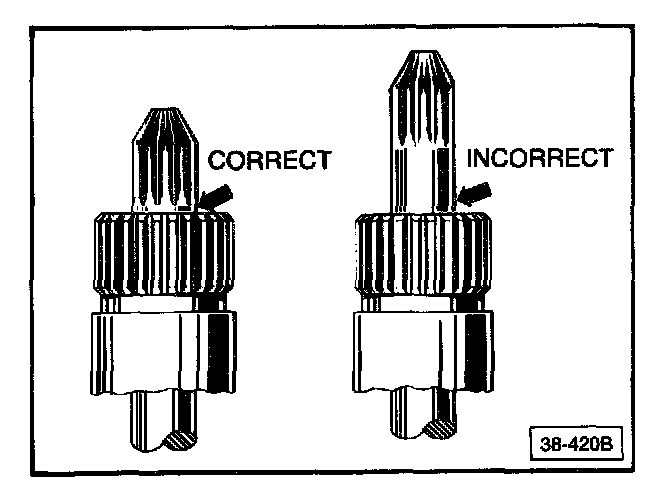

Fig. 4 Installation position, pump shaft
- turn pump shaft until seated into oil pump




Fig. 5 Turbine shaft length
- a = 265.1 mm (10.437 in.)
Different lengths of shafts are available.
Check dimension a before installing.

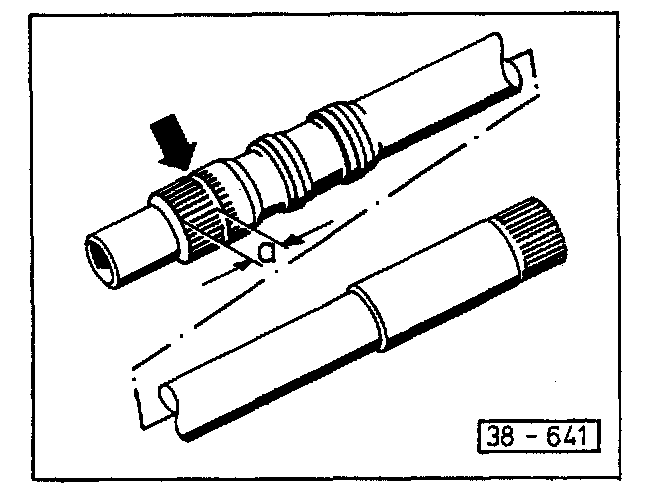

Fig. 6 Turbine shaft splines and seals
- spline depth a is limited by circlip
CAUTION
Never install shaft without circlip
- check seals for secure fit on turbine shaft




Fig. 7 Transmission / Final drive oil seal, removing




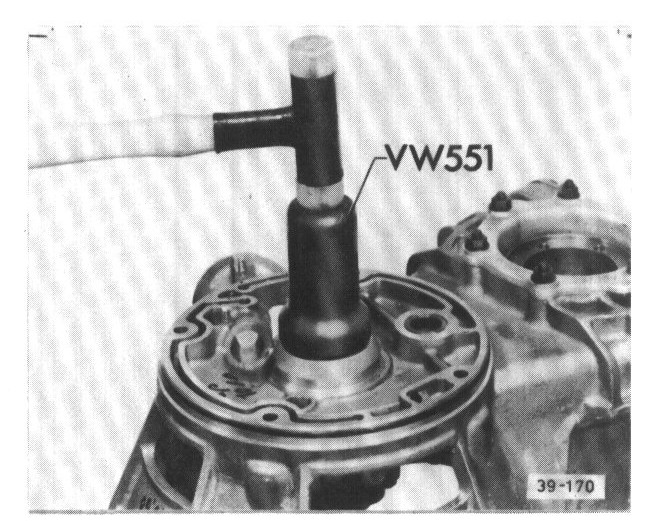

Fig. 8 Transmission/Final drive oil seal, installing

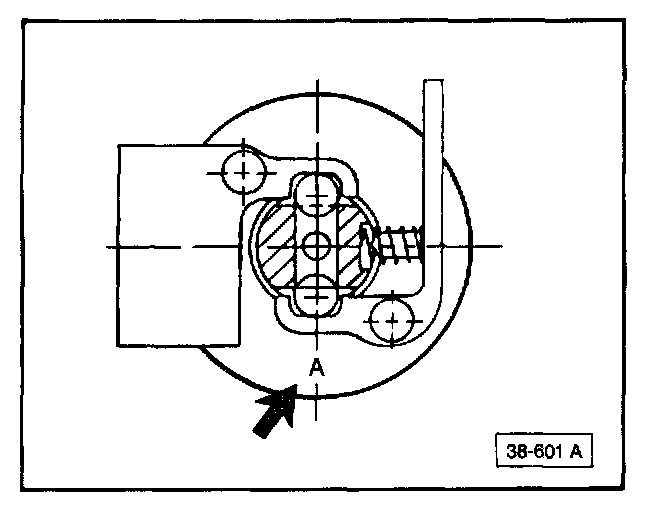

Fig. 9 Governor, Identification
- transmissions on gasoline engines are equipped with governors that have the code letter A
