Clutch Cable: Application and ID

*** THIS ARTICLE REFLECTS CHANGES MADE BY TSB # 309101, DATED AUGUST 31, 1991 ***.

Revised clutch system eliminates clutch pedal free play after:

VIN 30 MP 004 206.

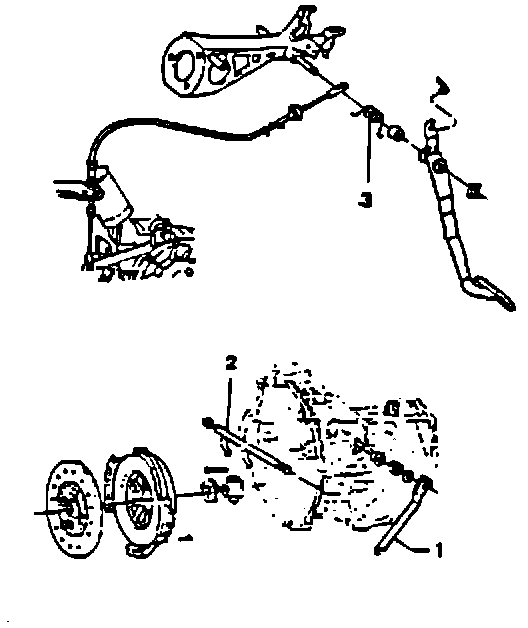

When repairing clutch systems on vehicles after VIN 30 MP 004 206, the following new parts are available:




^ Clutch Release Shaft Lever (1)
Part No. ZBA 141 719

^ Clutch Fork (2)
Part No. 013 141 701 1

^ Tensioning Spring (3)
Part No. 305 721 449 2

NOTE: This system has eliminated the clutch pedal stop and the release lever return spring.
