Without A/C

NOTE: As of 1991 m.y. from VIN _MP006927, the ventilation/heating system has changed as follows:
^ Cable-operated heater control valve is now used.
^ Vacuum-operated temperature regulator flap is now used.

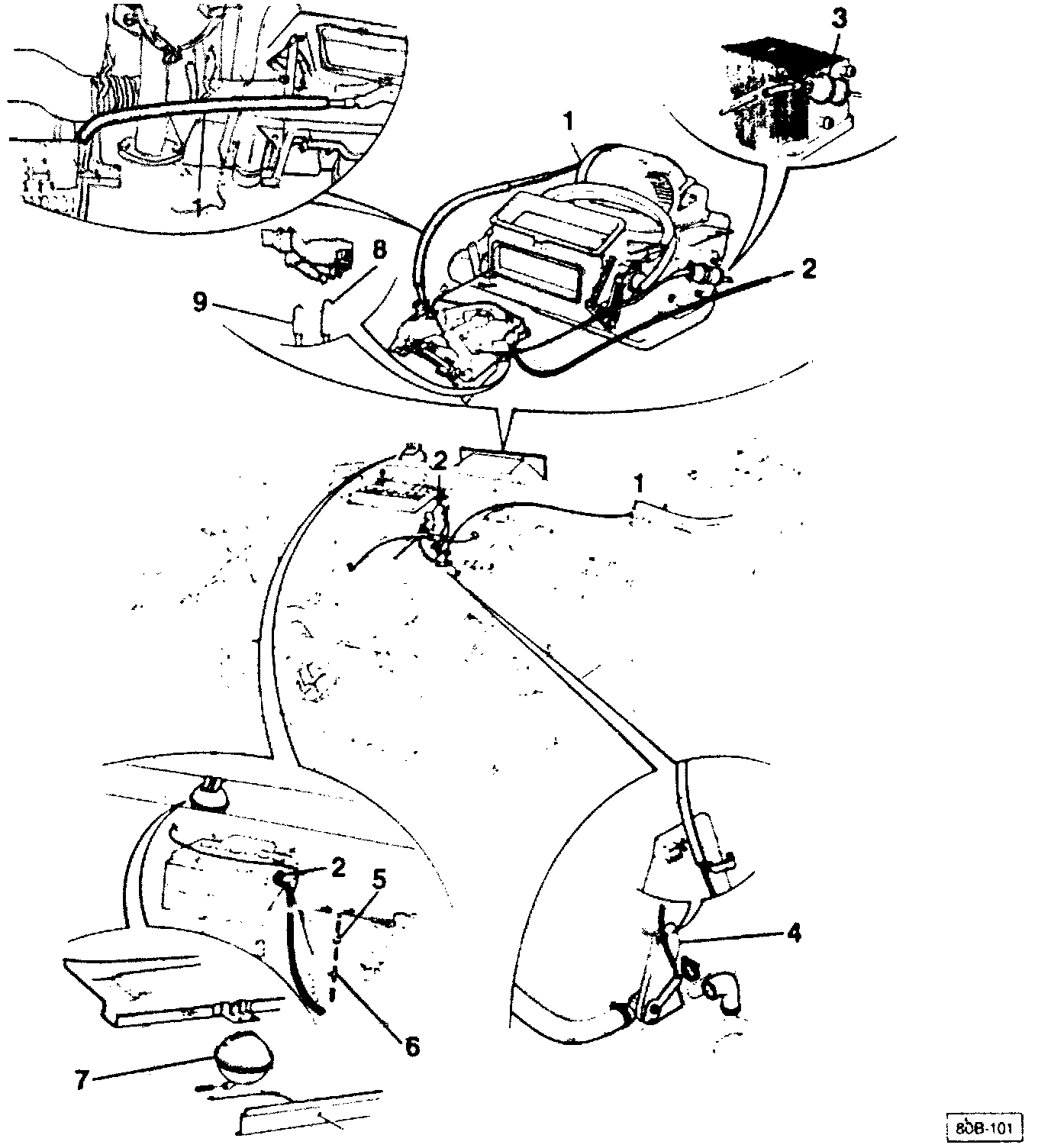

1 Heater control (temperature) cable
2 Temperature regulator flap servo vacuum hose
3 Temperature regulator flap vacuum servo
4 Heater control valve
5 Vacuum check valve
6 T-connection (vacuum supply)
7 Vacuum reservoir
8 Vacuum hose to temperature, regulator flap vacuum servo
9 Vacuum hose to vacuum supply (T-connection in engine compartment)





1. Adjust temperature control lever to max. cold position (arrow).





2. Unfasten cable retaining clip on heater control valve.
3. Push heater control valve lever in direction of (arrow) to stop (fully closed).
4. Reposition cable and fasten cable retaining clip.

If adjustment cannot be made:
1. Loosen control lever assembly in instrument panel (do not remove).





2. Check temperature cable position on control lever assembly, cable heathing must butt-up against stop (arrow).
3. Reposition temperature cable as necessary.
