Parking Brake System: Adjustments

Parking Brake Adjust






Remove heat deflector plate
Press down brake pedal once firmly.
Pull parking brake lever to second tooth

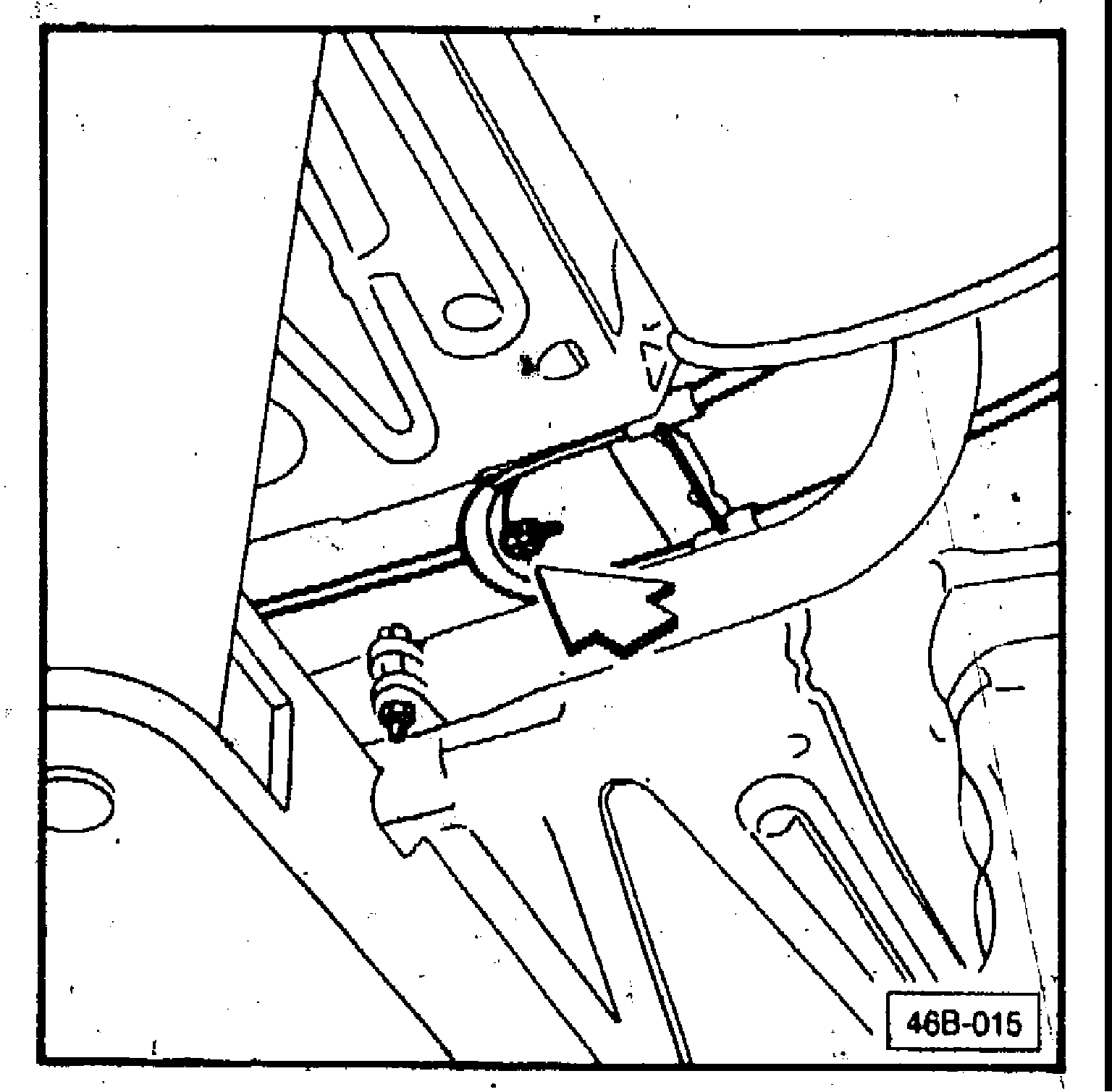

Tighten adjusting nut (arrow) until neither rear wheel can be turned by hand
release parking brake and check that both rear wheels rotate freely
Tighten lock nut (if installed)
