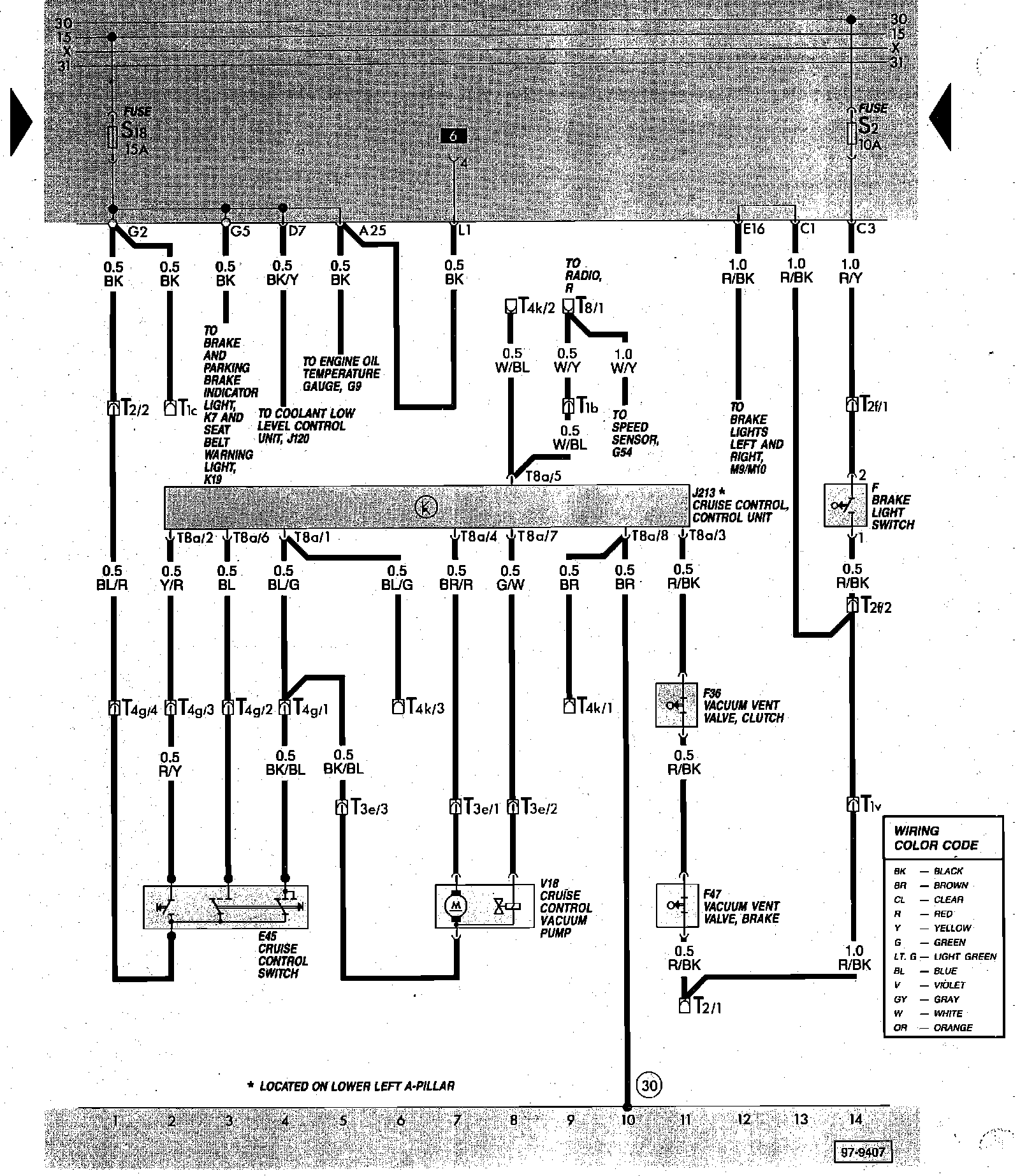

Cruise Control, M/T - Wiring Diagram

91vw07

Number
91-46

April 15, 1991


Cruise control
Cabriolet
(Manual transmission)


VA-22 1991





Description Current
track

Brake light switch, F 14

Cruise control switch, E45 2-4
Cruise control vacuum pump, V18 7-8
Cruise control, control unit, J213 2-11

Fuse, S18 1
Fuse, S2 14

Vacuum vent valve, brake, F47 11
Vacuum vent valve, clutch, F36 11


Wire connectors

T1b - single, behind fuse/relay panel
T1c - single, behind fuse/relay panel
T1v - single, behind fuse/relay panel
T2 - double, behind fuse/relay panel
T2f - double, behind instrument panel, left
T3e - three-point, above fuse/relay panel
T4g - four-point, behind steering column switch cover
T4k - four-point, near steering column
T8 - eight-point, on radio
T8a - eight-point, on control unit for cruise control

Ground connections

30 - beside fuse/relay panel
