Rear

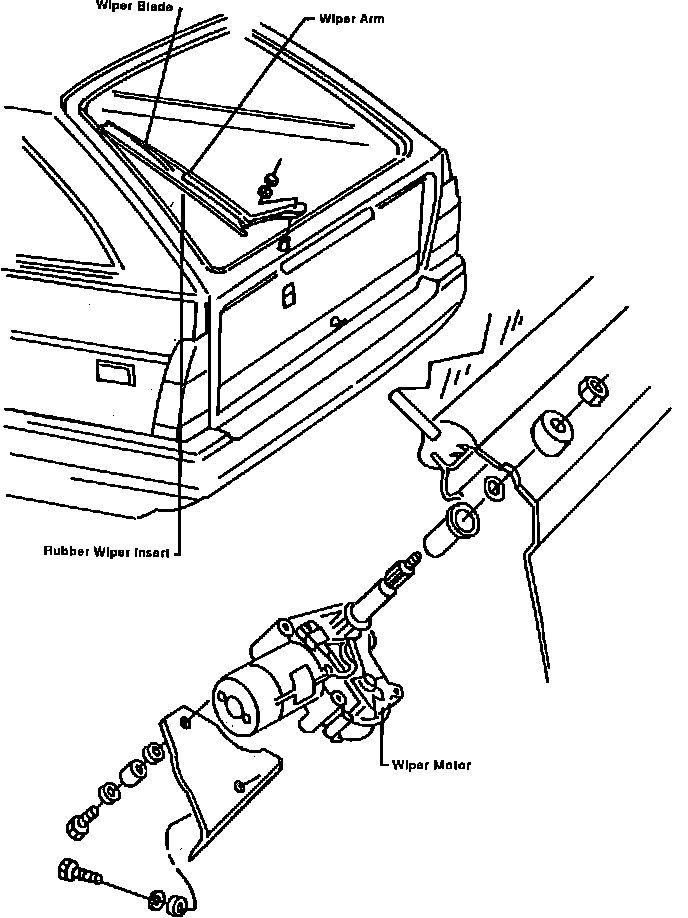

Fig. 11 Rear Windshield Wiper Assembly. Wagon:





Refer to Fig. 11 for wiper motor removal and installation.
