Piston: Testing and Inspection

Piston, checking

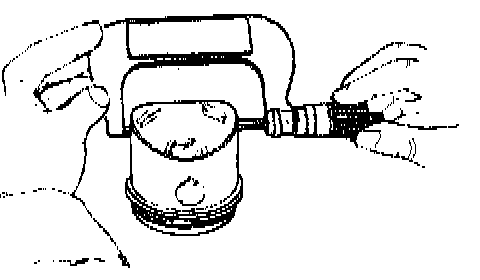

Piston, checking:

- measure approximately 10 mm (25/64 in.) from lower edge of skirt at 90° angle to piston pin axis

Nominal dimension tolerance:
- maximum 0.04 mm (0.0016 in.)

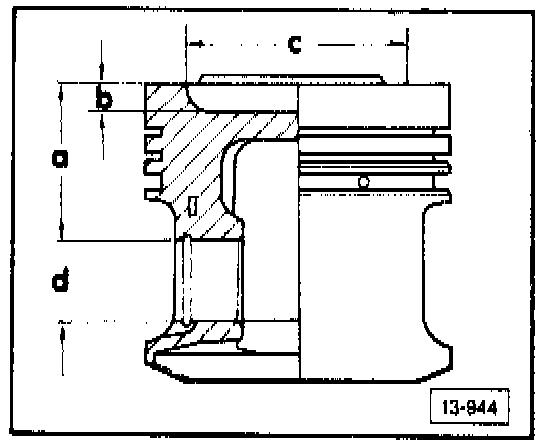

Piston identification (mm):

a = 28.5
b = 8.6
c = 55.0
d = 22.0
