Intake Manifold

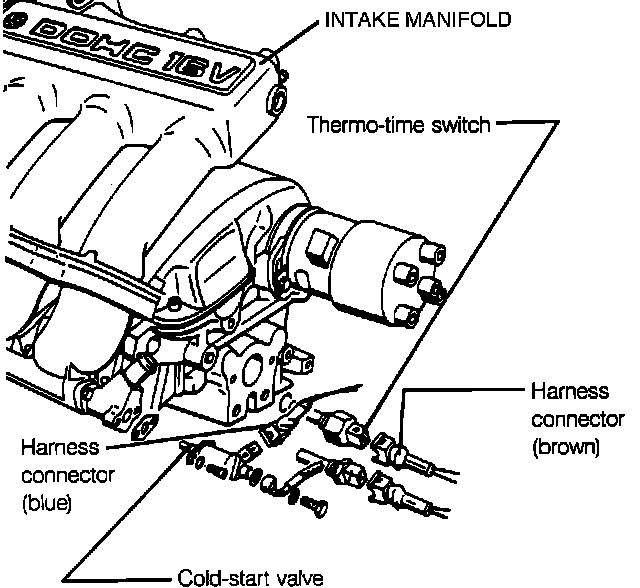

Intake Manifold
Cold Start Components:
The Intake Manifold is in the engine compartment, bolted to the cylinder head of the engine. The Intake Manifold is at the rear of the engine beside and above the cylinder head cover and near the firewall.
