Axle Wheel Bearings, Rear - Repair Procedure

88vw08

GROUP

42
NUMBER

88-01 August 18, 1988
MODEL(S):

All, all M.Y.
SUBJECT:

Rear axle wheel bearings
Most rear wheel bearing failures occur after repairs to the rear brakes/wheel bearings.

The following points MUST be noted when repairing rear axle brakes/bearings:


Wheel bearings, sealing

Moisture will enter the wheel bearing and cause damage if not sealed properly.

^ ALWAYS replace wheel bearing seals after removing; DO NOT use damaged seals.

FIGURE 1 - GREASE CAP, REMOVING:

FIGURE 2 - GREASE CAP, REMOVING:

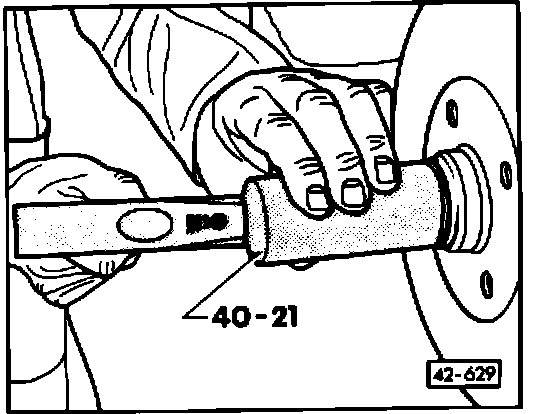

FIGURE 3 - GREASE CAP, INSTALLING:

^ DO NOT use damaged (dented) grease caps, replace (see Figs. 1-3)

^ Ensure that seals and grease caps are properly installed

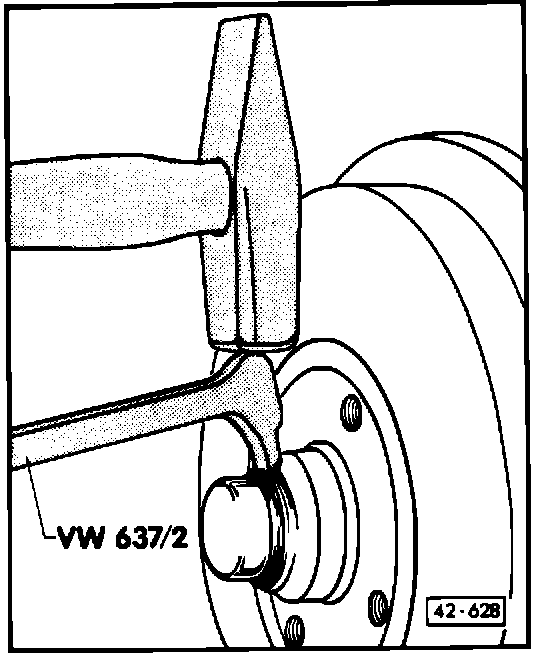

FIGURE 1 - GREASE CAP, REMOVING:

- loosen cap by hammering lightly

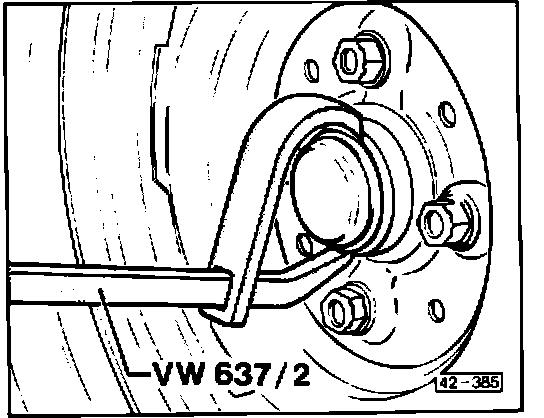

FIGURE 2 - GREASE CAP, REMOVING:

- pull off cap
Wheel bearings, cleaning

Taper roller bearings must NOT be washed. Bearings that will be reused must be carefully protected from dirt and impurities when removed. If necessary, add additional wheel bearing grease.

Wheel bearings, pairing

New taper roller bearings must only be installed in pairs, i.e. bearing outer race and bearing inner race with rollers must be from same manufacturer.

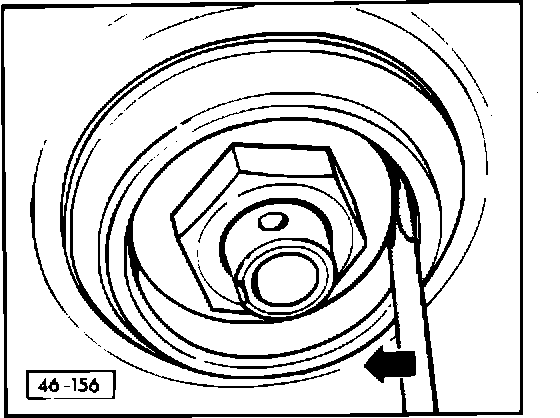

Wheel bearings, adjusting
- tighten nut securely while turning wheel so bearing does not jam
- adjust nut so thrust washer can be moved slightly using finger pressure against a screwdriver (Do not twist or pry screwdriver)
