M/T - Modified Housing Vent
87VW1GROUP
35
NUMBER
87-02 November 2, 1987
SUBJECT:
Modified transmission housing vent, 5-speed manual transmission 020
MODEL(S):
Cabriolet, 1987 on
Scirocco, 1987 on
Beginning with vehicles produced during July 1986, the location of the transmission vent is changed.
When replacing the transmission housing, a sleeve, Part No. 014 301 473, must be installed in the ventilation hole. Drive the sleeve in up to the stop using tool 32-106. The sleeve is supplied with a plastic cap, Parts No. 014 301 485.

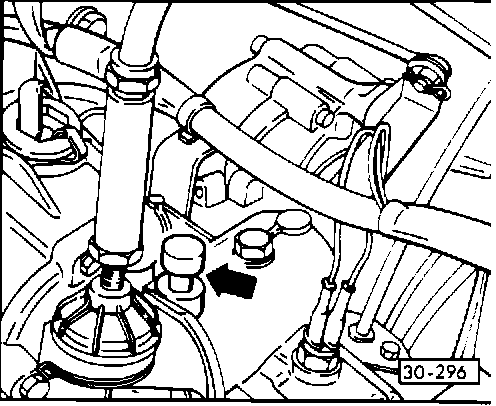

Transmission vent, previous location (arrow)
CAUTION
Part Numbers are for reference only.
Always consult with your Parts Dept.. for latest information.

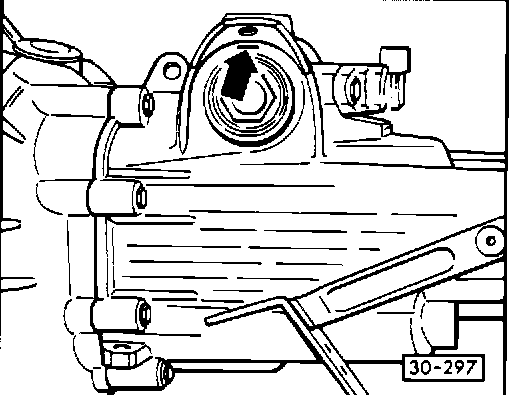

Transmission vent, new location
(arrow)
