Electrical Diagrams

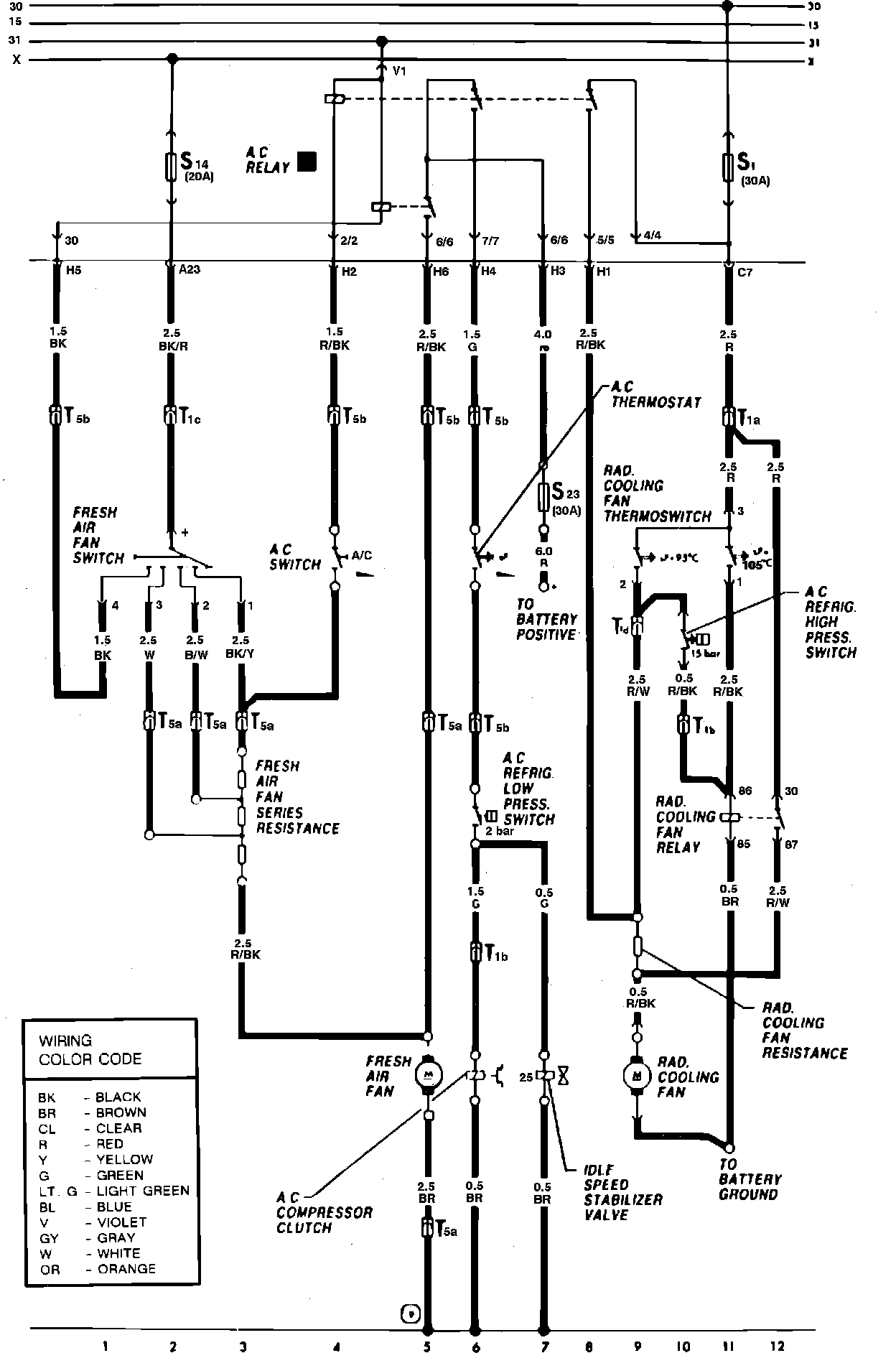

Air conditioning - Scirocco 1985-1988

Diagrams By Track Number

Tracks 1-12:

Fuse & Relay Panel:

Description Current Track
A/C compressor clutch 6
A/C switch 4
A/C thermostat 6
A/C refrig. low press. switch 6
A/C refrig. high press. switch 10
A/C relay 4-9
Battery 7, 11
Fresh air fan 5
Fresh air fan series resistance 3
Fresh air fan switch 1-3
Idle speed stabilizer valve 7
Radiator cooling fan 9
Radiator cooling fan relay 11, 12
Radiator cooling fan resistance 9
Radiator cooling fan thermoswitch 9, 10

Wire connectors
T1a - single, under instrument panel
T1b - single, in engine compartment
T1c - single, under instrument panel
T1d - single, in engine compartment
T5a - five point, under instrument panel
T5b - five point, under instrument panel

Ground connections
9 - under fuse/relay panel
