System Diagram

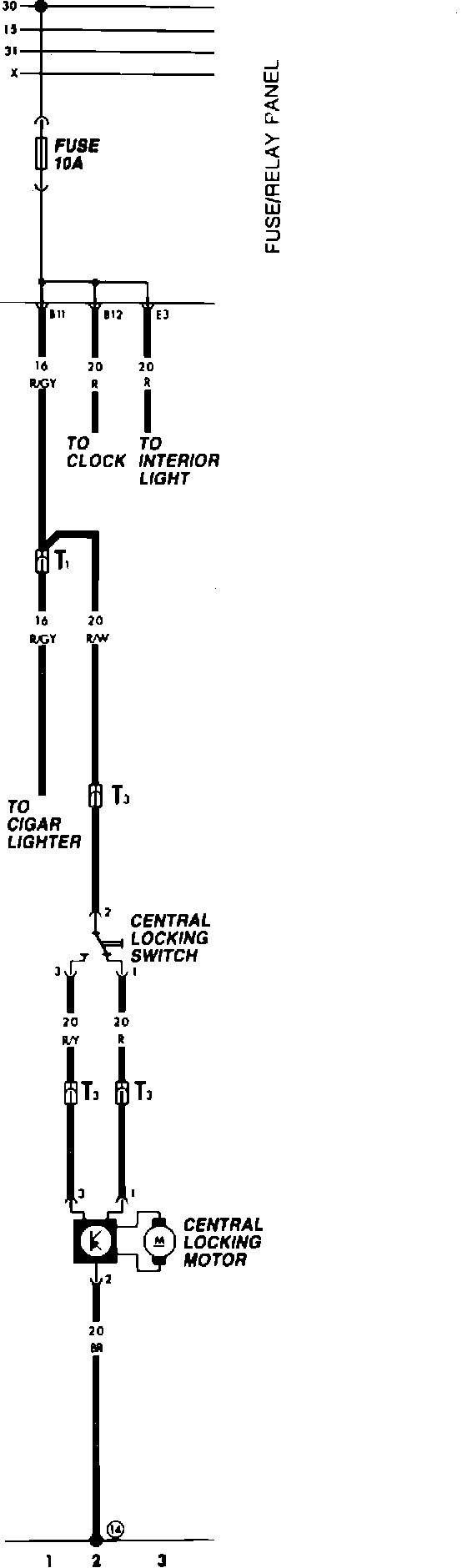

Central locking - Scirocco 1985-1988

Diagrams By Track Number

Tracks 1-3:

Fuse & Relay Panel:

Description Current Track
Central locking motor 2, 3
Central locking switch 2, 3
Cigarette lighter 1
Digital clock 2
Interior light, front 3
Fuse, S3 1

Wire connectors
T1 - single, next to fuse/relay panel
T3 - 3-point, below dash, left

Ground Connections
14 - next to Bi-pressure pump
