Stationary Window Glass - Sealing During Installation
87VW1Applies To
SCIROCCO
ALL
Group
64
Subject
Windows
Part Identifier N/A
Key Points
Sealing stationary window glass
A323
Number
87-01
April 21, 1987
When removing and installing stationary window glass, seal the body flange and the glass channel of the rubber seal to prevent leaks..
CAUTION
Remove any remaining adhesive from the body flange and the glass channel of the rubber seal with 3M (R) All Purpose Adhesive Cleaner or equivalent.

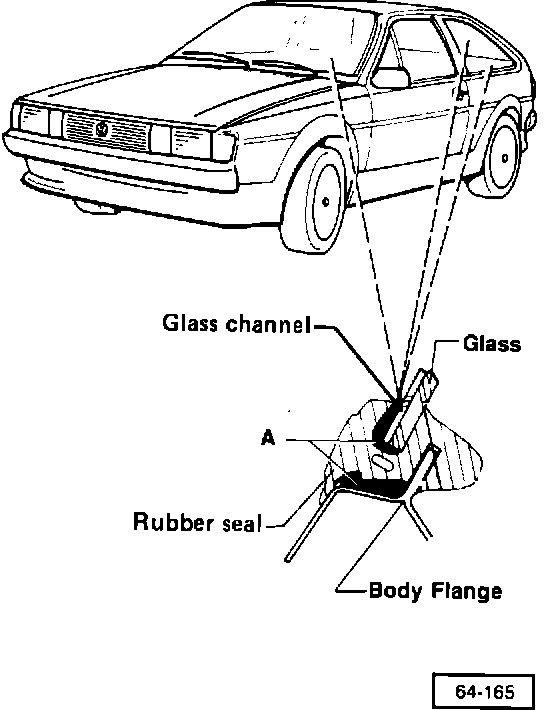

- apply 3M (R) Windshield Sealer or equivalent around perimeter of the body flange and the glass channel of the rubber seal at A
