Control Arm Bushing - Replacing and Recommended Tools

89VW02

SUBJECT:

Control arm bushing, replacing
GROUP

40

NUMBER

89-01 February 28, 1989

MODEL(S):

Quantum, all M.Y.

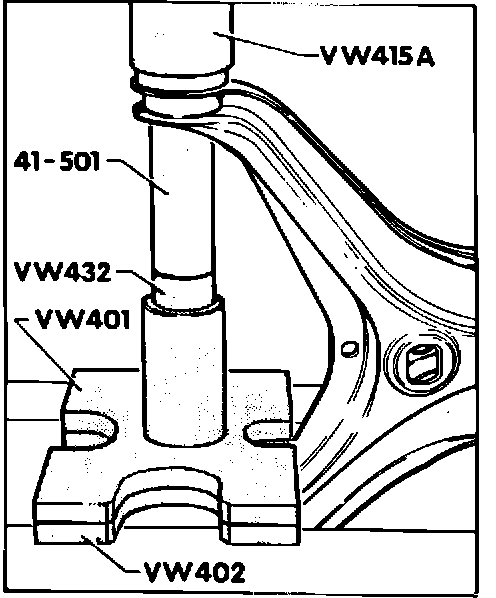

FIGURE 1 - CONTROL ARM BUSHING, PRESSING OUT:

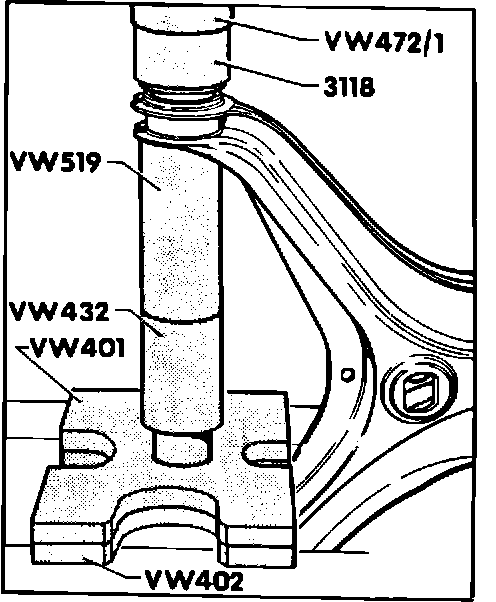

FIGURE 2 - CONTROL ARM BUSHING, PRESSING IN:

Fig. 1 and Fig. 2 show the correct tools to use when replacing the front control arm bushing. The tools shown here are different than tools currently illustrated in the repair manual microfiche.
