Home
>>
Volkswagen
>>
1987
>>
Quantum Syncro AWD L5-2226cc 2.22L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

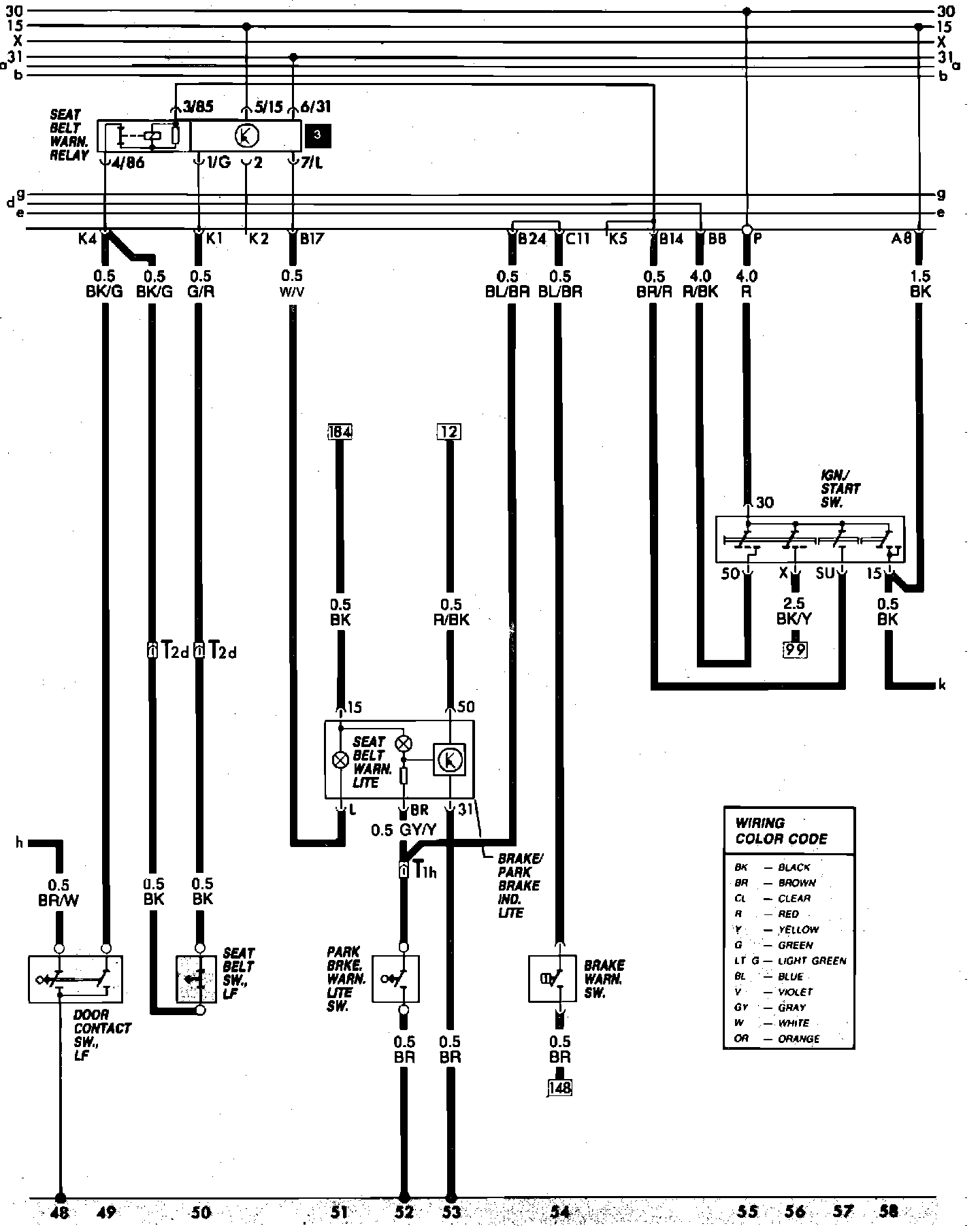

Fig. 22 Ignition Switch & Seat Belt Warning System:
