Volkswagen
>>
1987
>>
Quantum Syncro AWD L5-2226cc 2.22L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Diagram Information and Instructions
>>
Main Diagrams By Track Number
>>
Track 59 - 72
Track 59 - 72

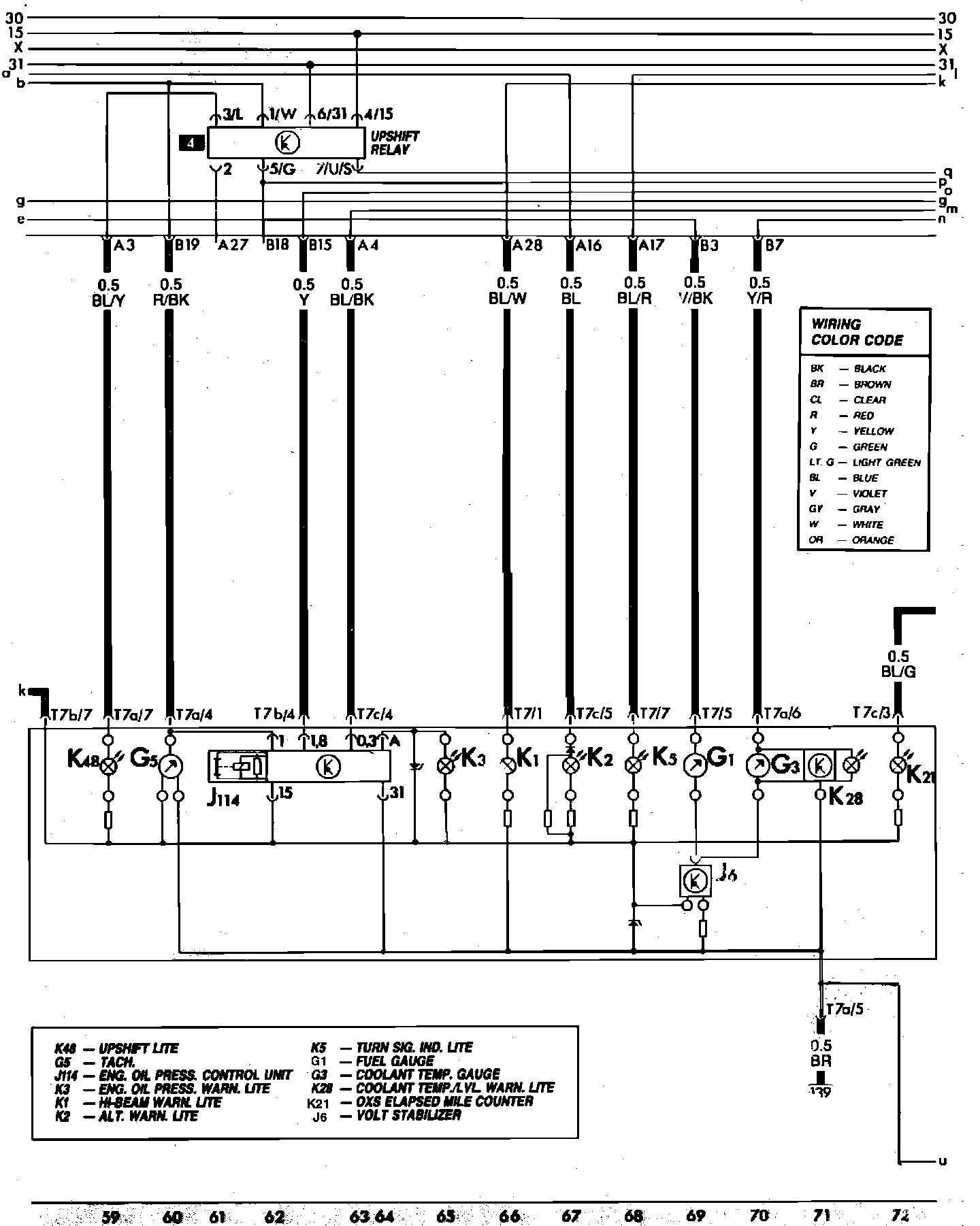

Fig. 23 Instrument Cluster:
