Quantum Syncro AWD L5-2226cc 2.22L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

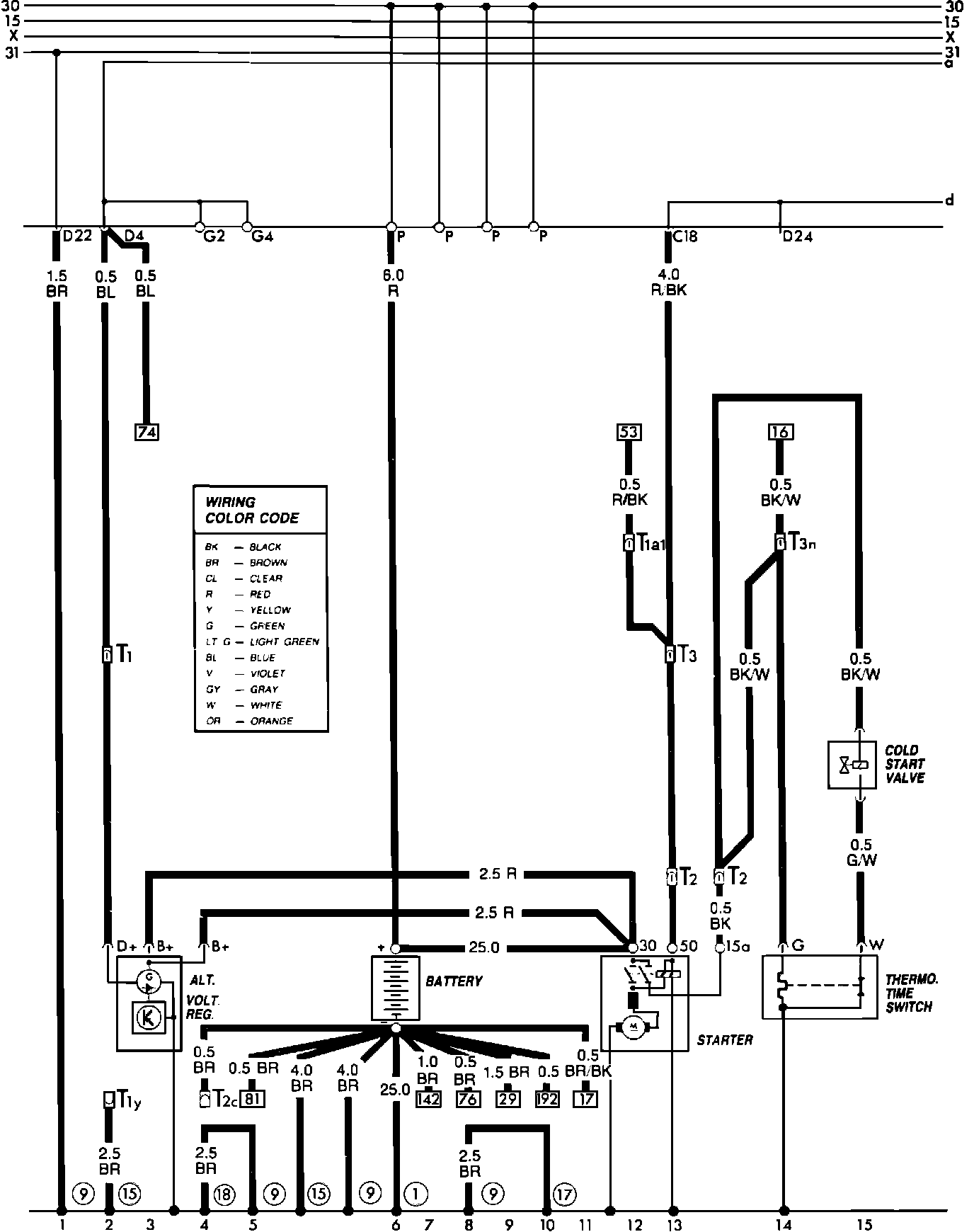

Cold Start Wiring Circuit:
