Volkswagen
>>
1987
>>
Quantum Syncro AWD L5-2226cc 2.22L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Front
Front

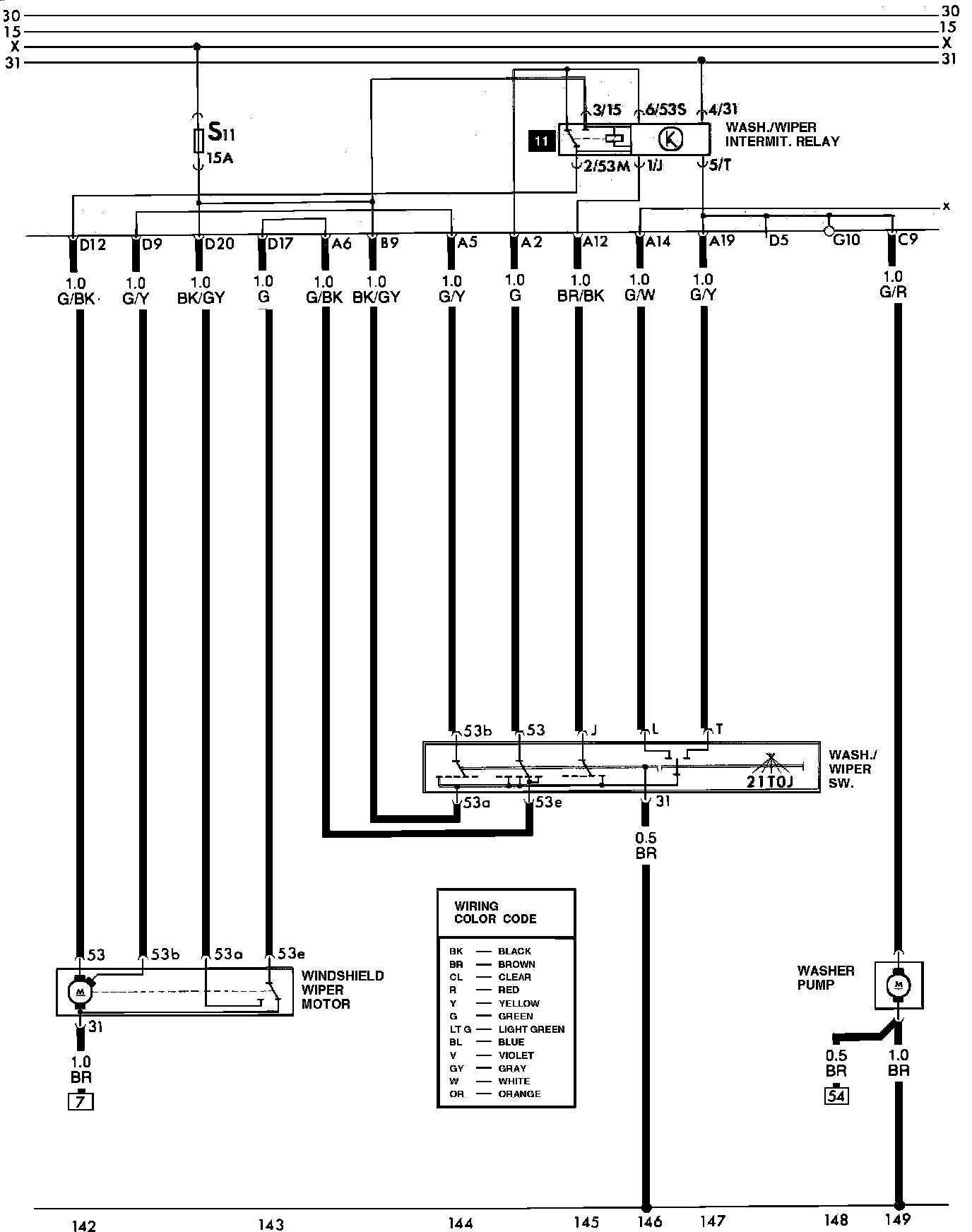

Fig. 30 Windshield Wiper/Washer System:
