Home >> Volkswagen >> 1987 >> Quantum Syncro AWD L5-2226cc 2.22L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp

Tail Lamp

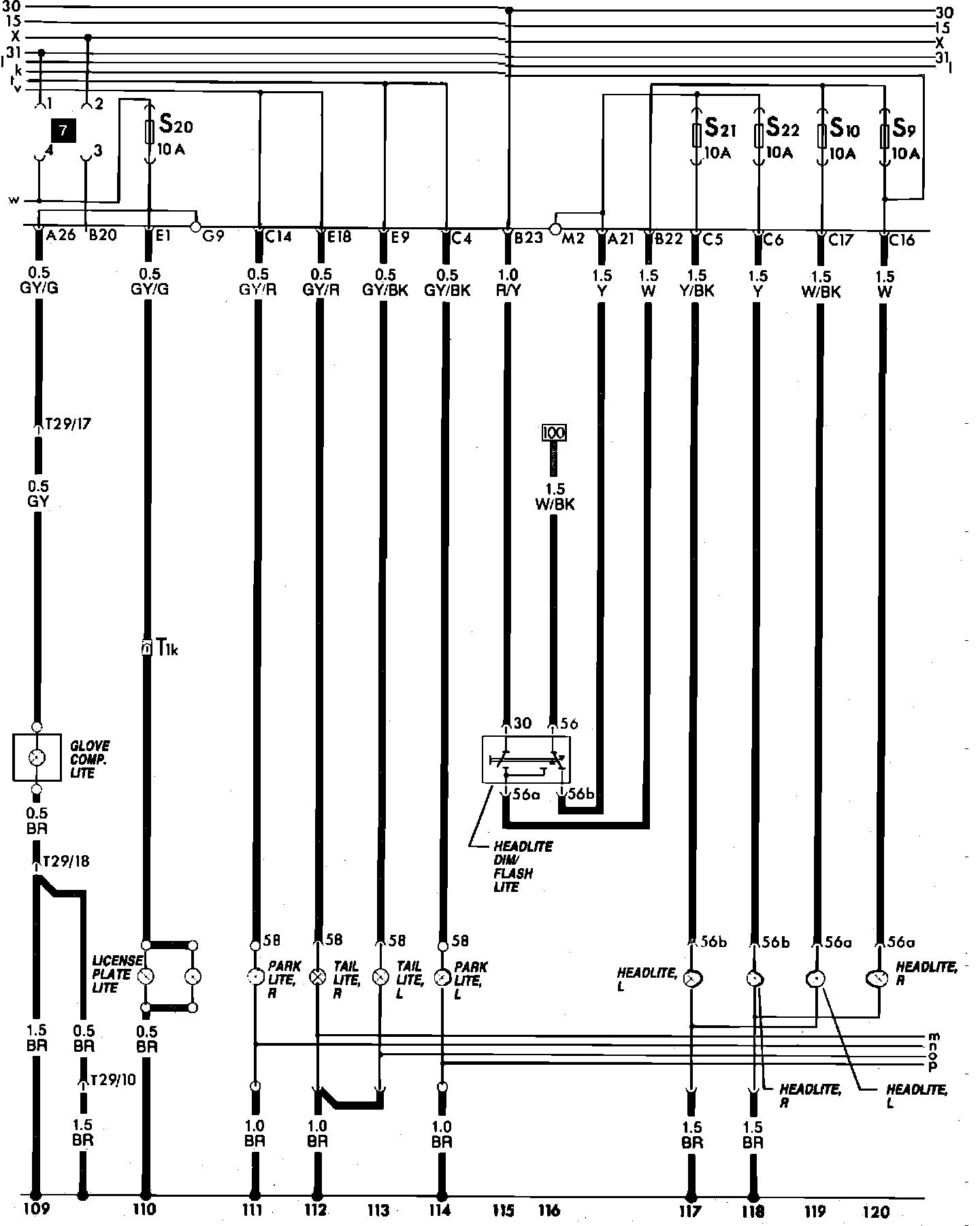

Fig. 27 Exterior Lamp:
