Home >> Volkswagen >> 1987 >> Quantum 2WD L5-2226cc 2.22L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Part 1 of 3

Part 1 of 3

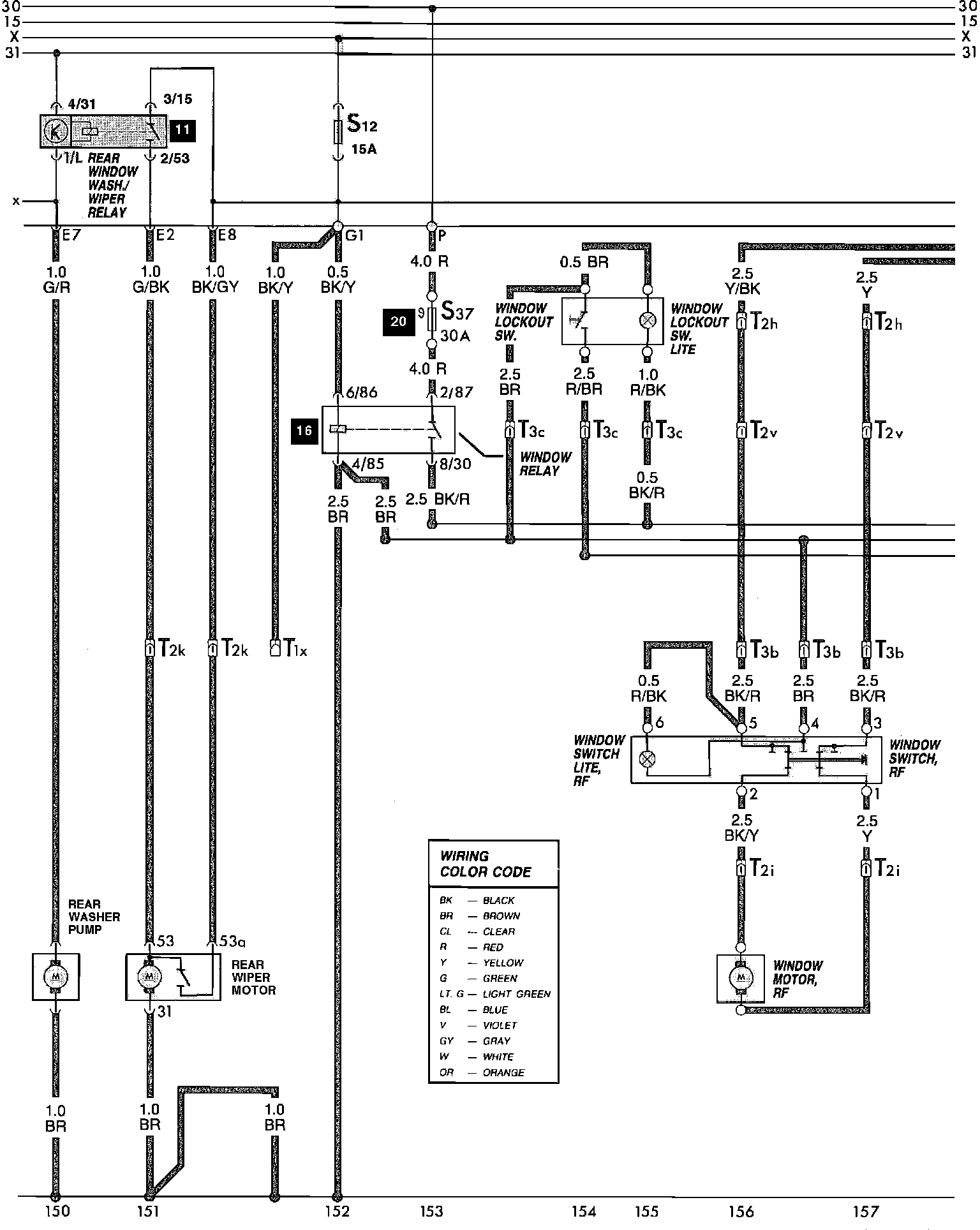

Fig. 31a Power Window:
