Tools - A/C Quick Disconnect Adapter

87VW05 ToolsEquipment

August 3, 1987
Subject Key Points

A/C Quick Disconnect Fitting 1987 Golf, GTI - Quick Disconnect Evacuation
Installed on 1987 Golf, GTI Filling Port for A/C Refrigerant Circuit
As a running change during 1987 MY production, the evacuation filling port (shrader valve) were changed to a quick disconnect type used on late GM and Ford models. For evacuation/filling, it is required to use a quick disconnect adapter.

The adapter used for this application can be obtained from various after-market sources. If there is difficulty in obtaining this adapter, the Draf #AC1107 (Quick Disconnect Adapter) is now available to order through your teleprocessor (T.P., X.P.) or by purchase order through your regional/distributor service department.



ORDERING INFORMATION


EQUIPMENT NO. DESCRIPTION ORDERING NO. DEALER PRICE

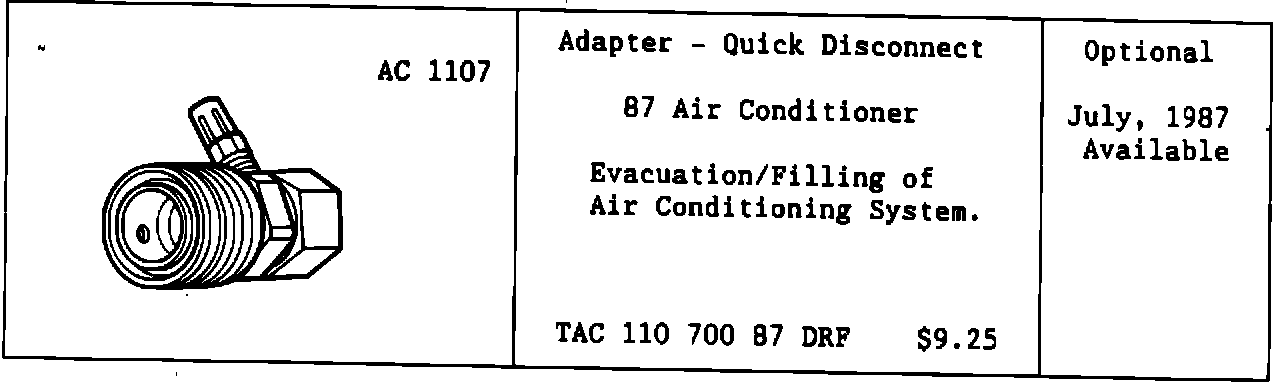

AC 1107 Quick Disconnect Adapter TAC 110 700 87 DRF $ 9.25
