Shift Lock - Wiring Diagram

Number: 95-02

Date: February 10, 1995

Applies To:
Cabriolet

Subject:
Shift Lock Wiring Diagram (All Models Up To 1995)

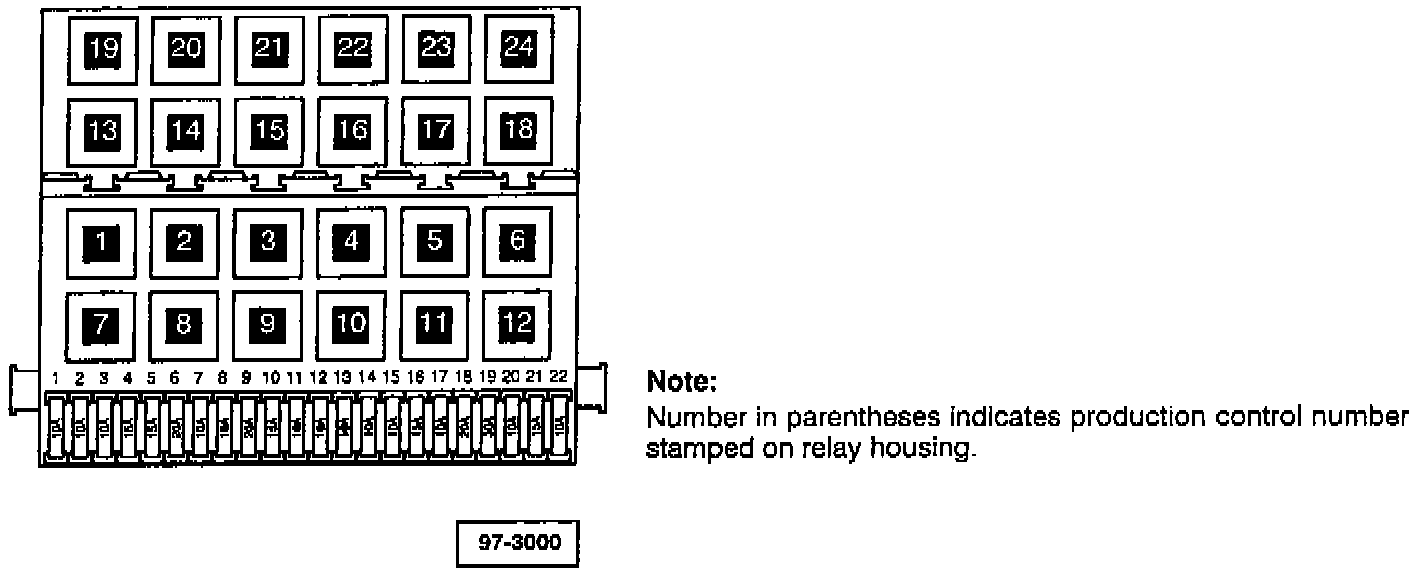

Relay locations

Position of relays and multi-pin connector wiring, see also "Component Locations" section.

Fuse Colors

30A - Green
25A - White
20A - Yellow
15A - Blue
10A - Red

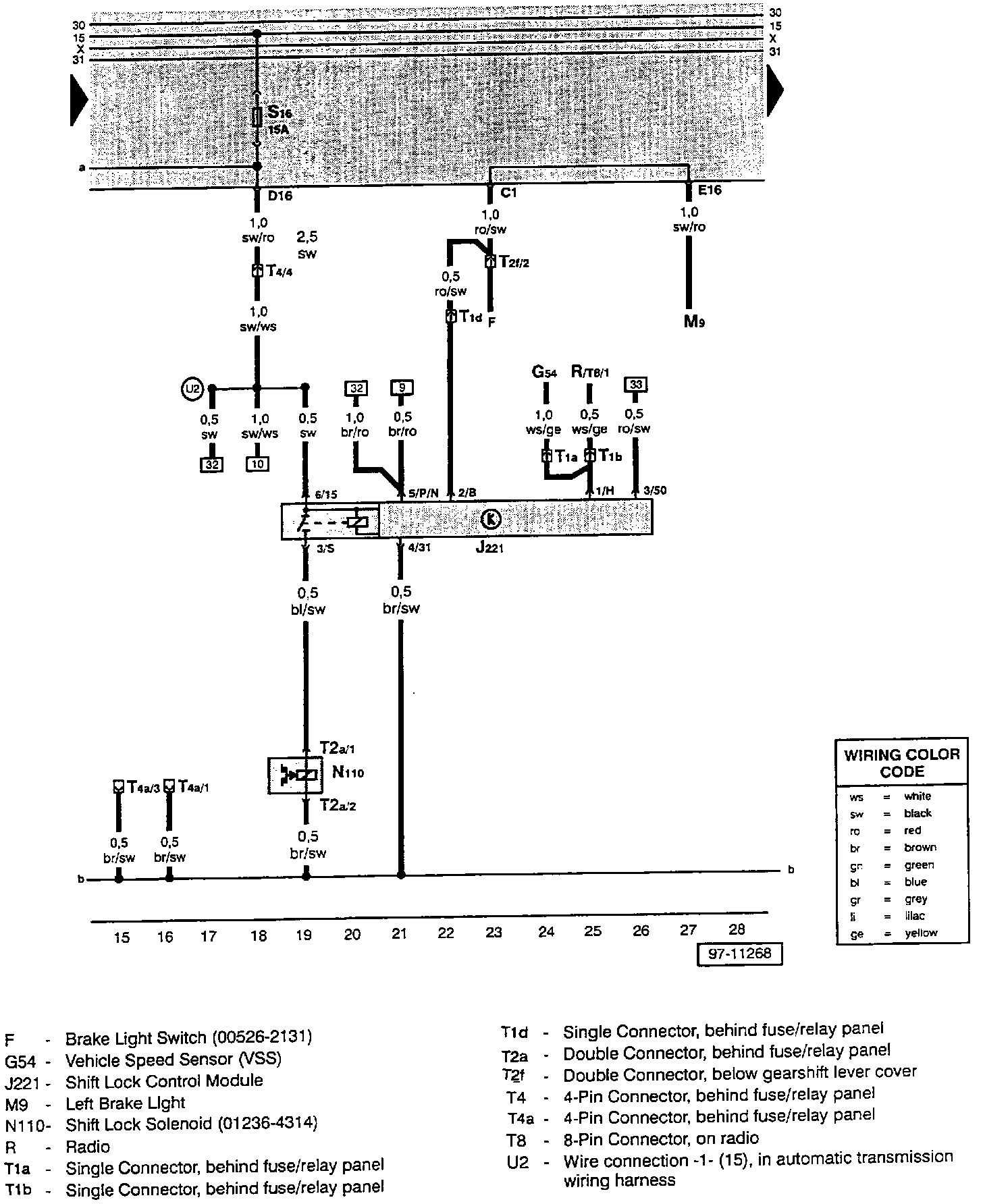

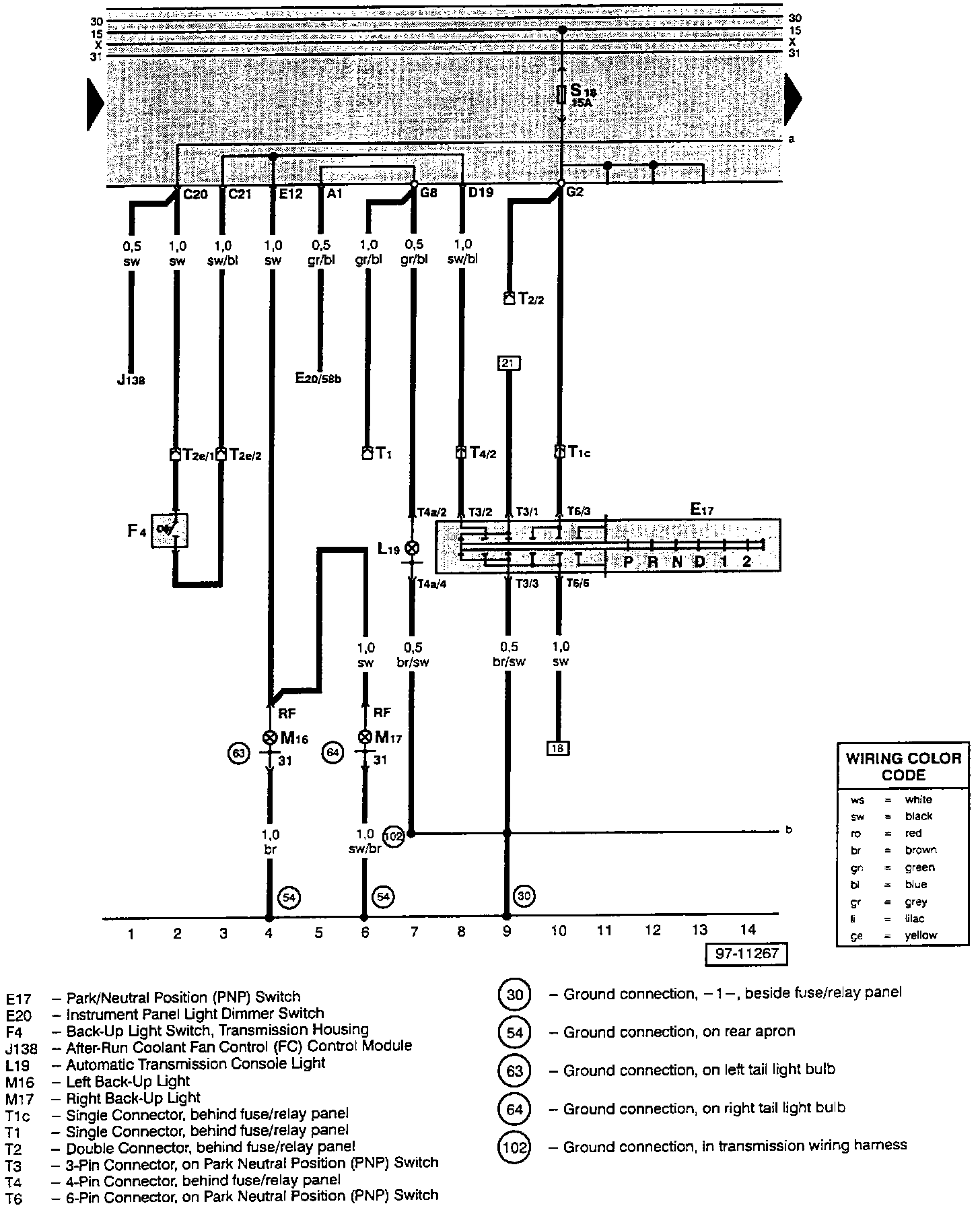

Wiring Diagram:

Shift Lock Wiring Diagrams
