Load Sensitive Brake Pressure Regulator - Testing/Adjust
86VW2Applies To
QUANTUM SYNCRO
1986
Group
47
Subject
Brake Pressure Regulator
Part Identifier N/A
Key Points
Testing/adjusting load sensitive brake pressure regulator
A225
Number
86-02
March 12, 1986
The 1986 Quantum syncro has a load sensitive brake pressure regulator mounted on the rear final drive housing. This regulator is operated by a spring attached to an adjustable mount. The spring mount is on a bracket fastened to the stabilizer bar..
Brake pressure regulator, testing/adjusting Work sequence
^ vehicle not loaded (no cargo)
^ fuel tank full
^ driver in vehicle

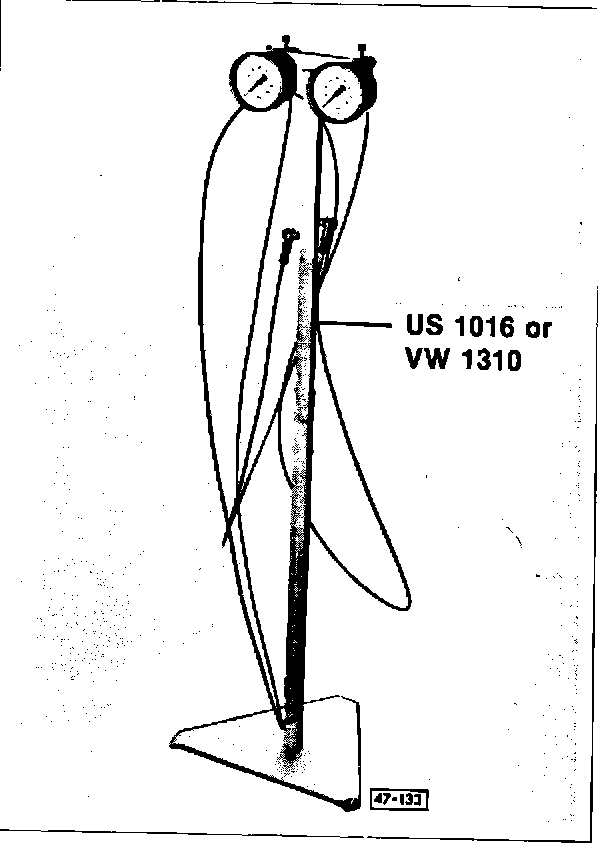

- raise vehicle and connect gauges to left front and left rear brake calipers
- bleed both hoses and gauges with bleeder valve on gauges
- let vehicle down and bounce car several times at rear
- depress brake pedal until gauge on front caliper reads 60 bar (870 psi)
^ gauge on rear caliper must read 41-48 bar (595-696 psi)
- increase pressure on brake pedal until gauge on front caliper reads 100 bar (1450 psi)
^ gauge on rear caliper must read 58-65 bar (841-943 psi)
- if readings are not within specifications, move spring mounting in slot.
^ test pressure on rear axle too high:
release spring tension
^ test pressure on rear axle too low:
increase tension on spring
CAUTION
Do not adjust spring tension with brake pedal depressed.
- recheck pressures
- if pressure cannot be adjusted, replace regulator
- disconnect pressure gauges and bleed brakes
