Engine Lubrication
>>
System Diagram
System Diagram

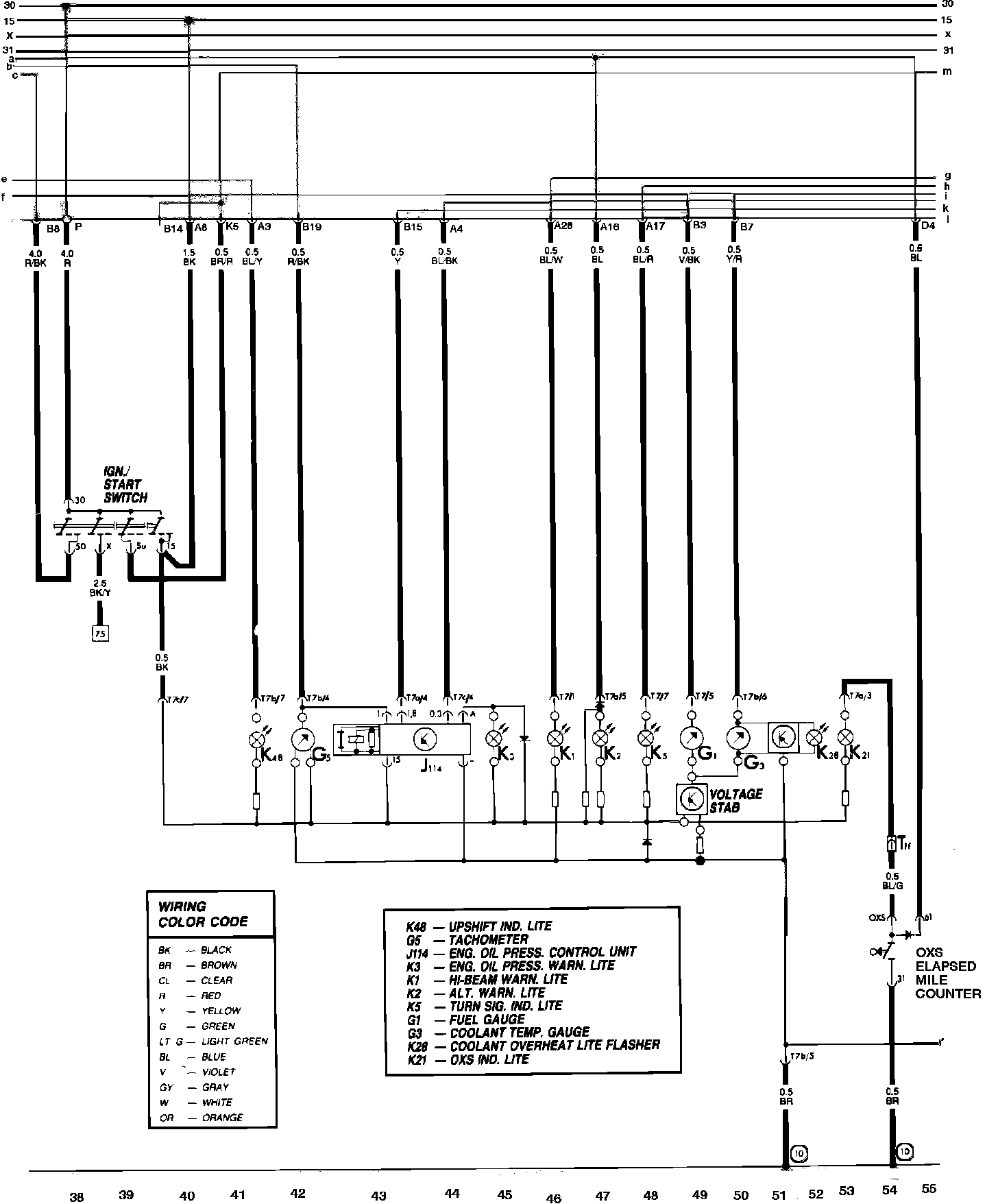

Alternator Warning, Fuel Gauge, Oil Pressure Control Unit, Ignition & Starting Switch:
