Cigarette Lighters - Not Interchangeable

86VW1 Applies To RABBIT, PICKUP, GOLF, GTI, CABRIOLET, SCIROCCO, JETTA, VANAGON, QUANTUM
Group

90
Subject

Cigarette Lighter


Part Identifier 9062
Key Points

Non-interchangeable cigarette lighters


C
Number

86-02

July 11, 1986

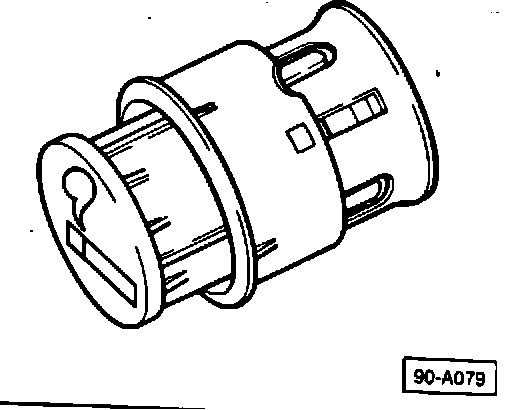

FIGURE 1 - PART NUMBER 175.919.307B:

FIGURE 2 - PART NUMBER 171.919.305 OR 191.919.305:

Two different cigarette lighters are used in Volkswagen vehicles and they are NOT interchangeable.. If installed in the wrong vehicle it is possible that the lighter will not release properly, thus creating a possible safety hazard.

Application: Rabbit - all Pickup - all Golf - all GTI - all
Application: Cabriolet - all Jetta - all Vanagon - all Quantum - all Scirocco - all
