Pinout Values and Diagnostic Parameters

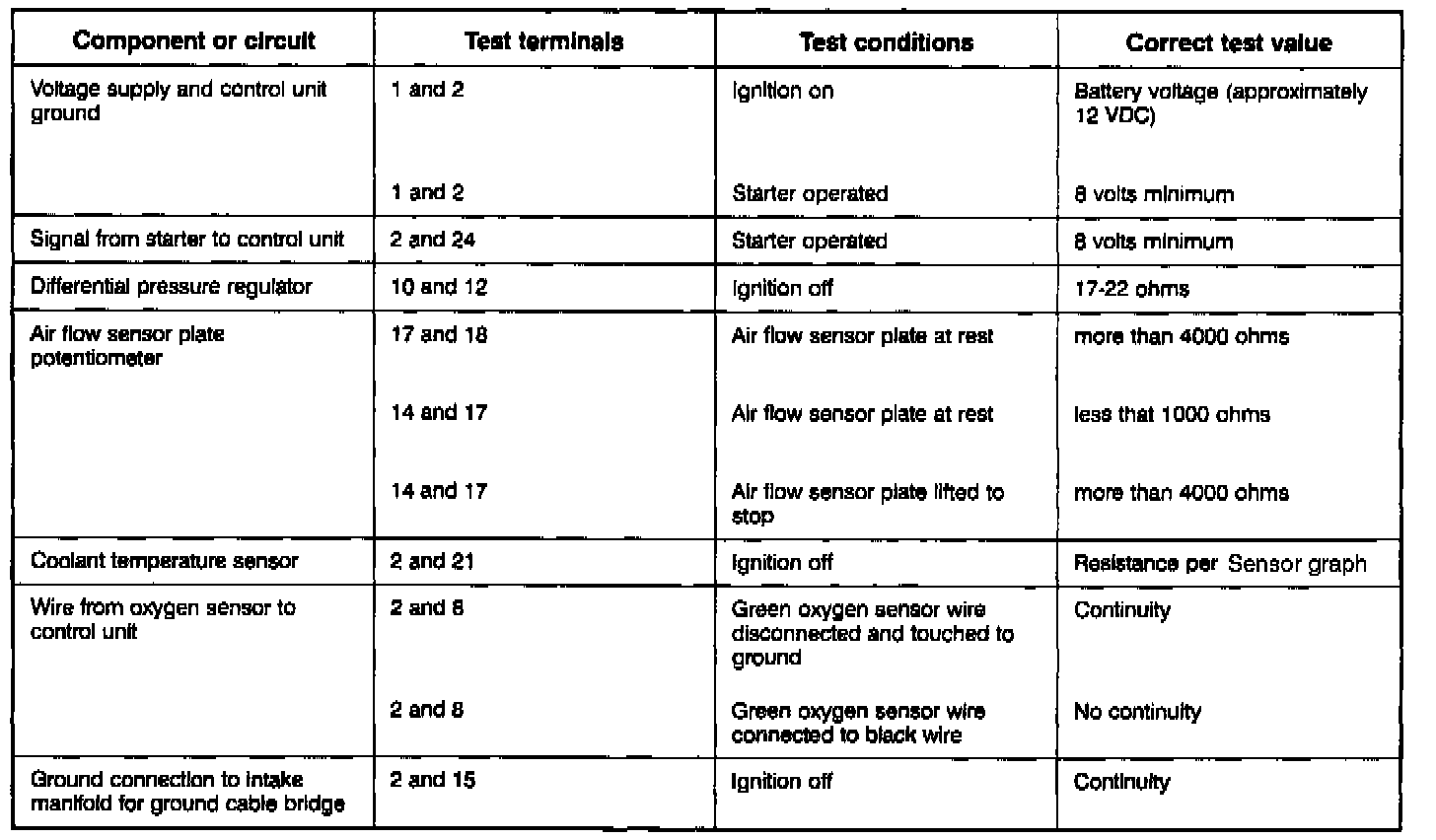

Electrical Test, Part 1 of 2

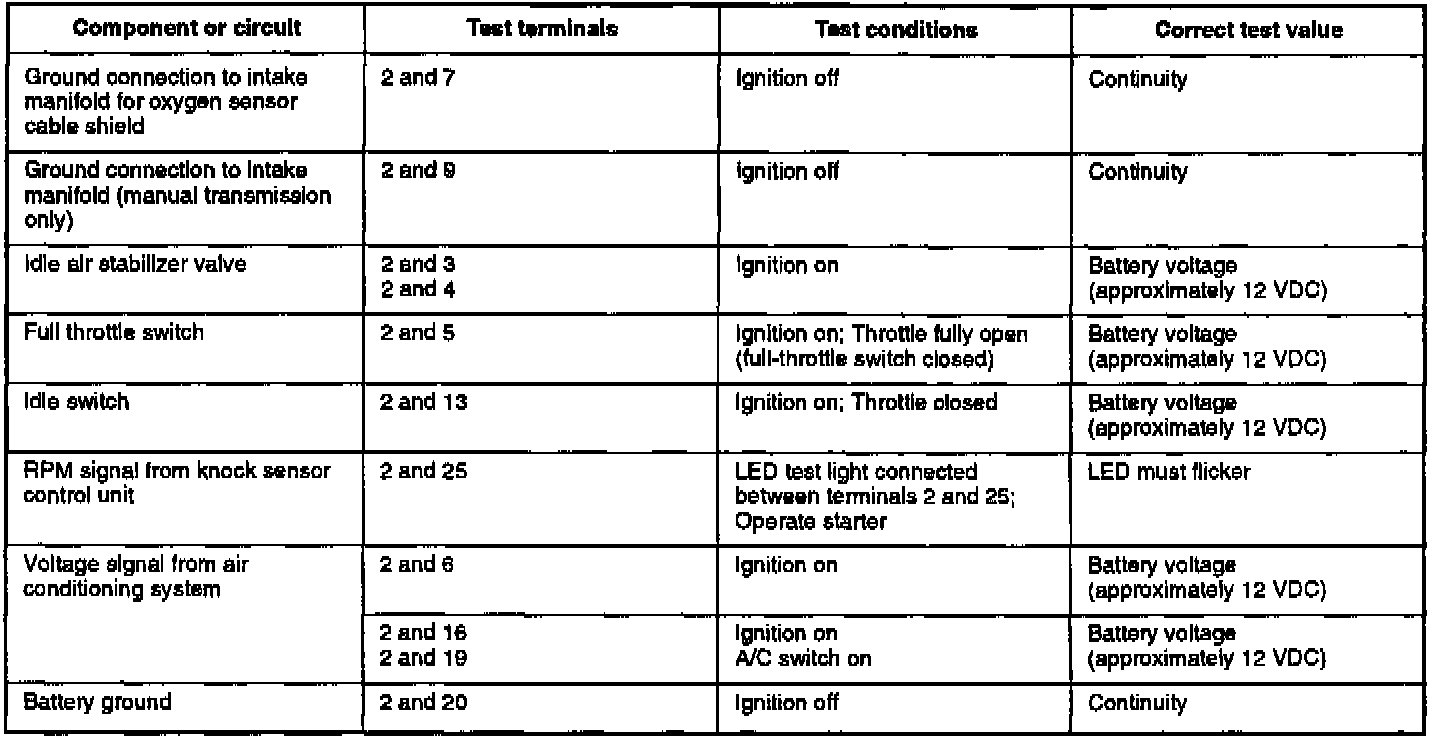

Electrical Test, Part 2 of 2

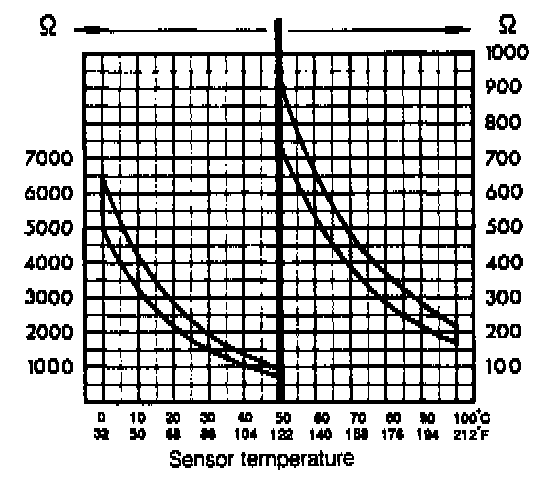

Sensor Graph
