Oil Pressure Systems
Oil Pressure Systems

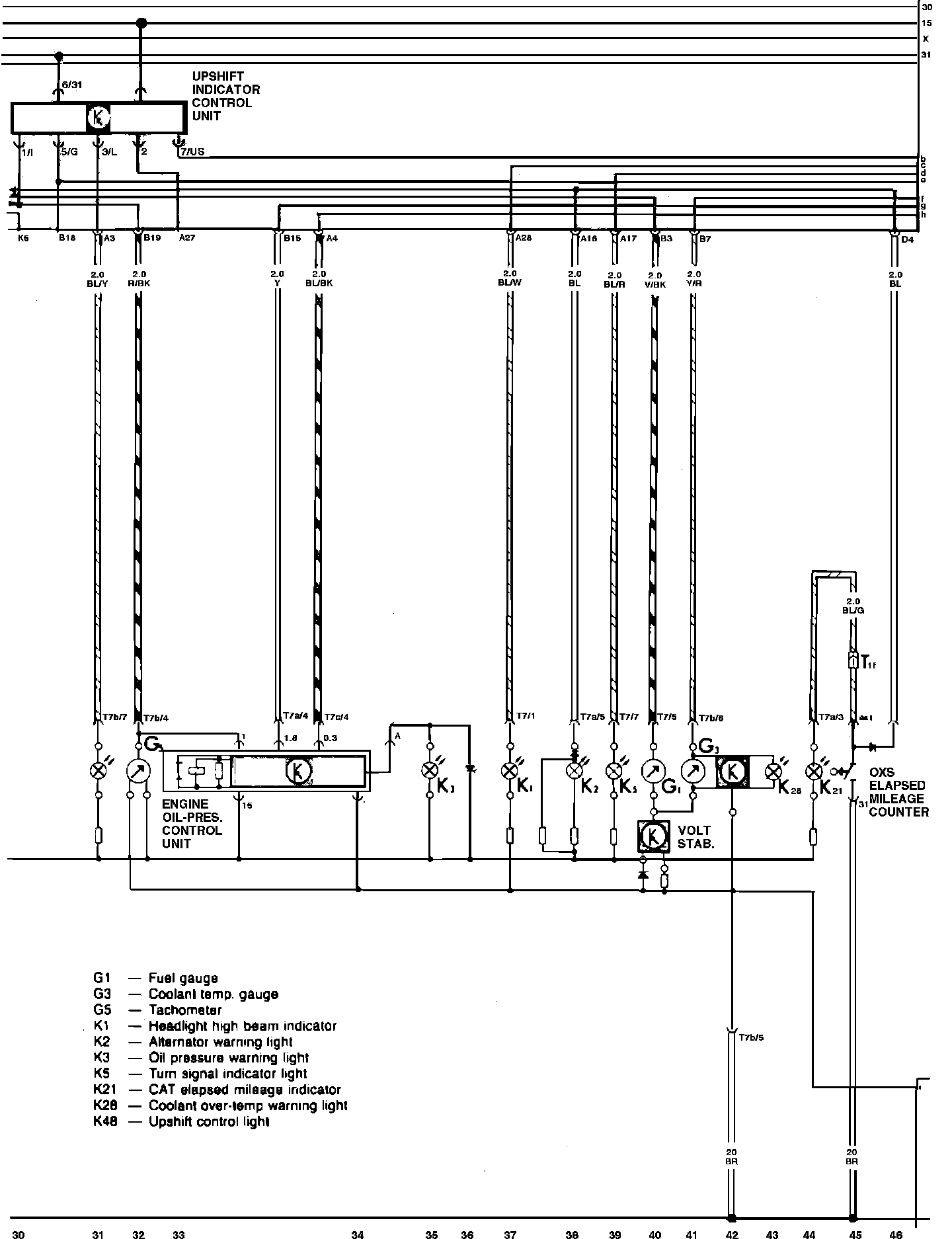

Fig. 35c Alternator, Coolant Over Temperature, Oil Pressure Warning, Fuel Gauge, Headlight, Oil Pressure Control Unit & Upshift Indicator:
