Oil Temperature Sensor/Switch, Engine
Oil Temperature Sensor/Switch, Engine

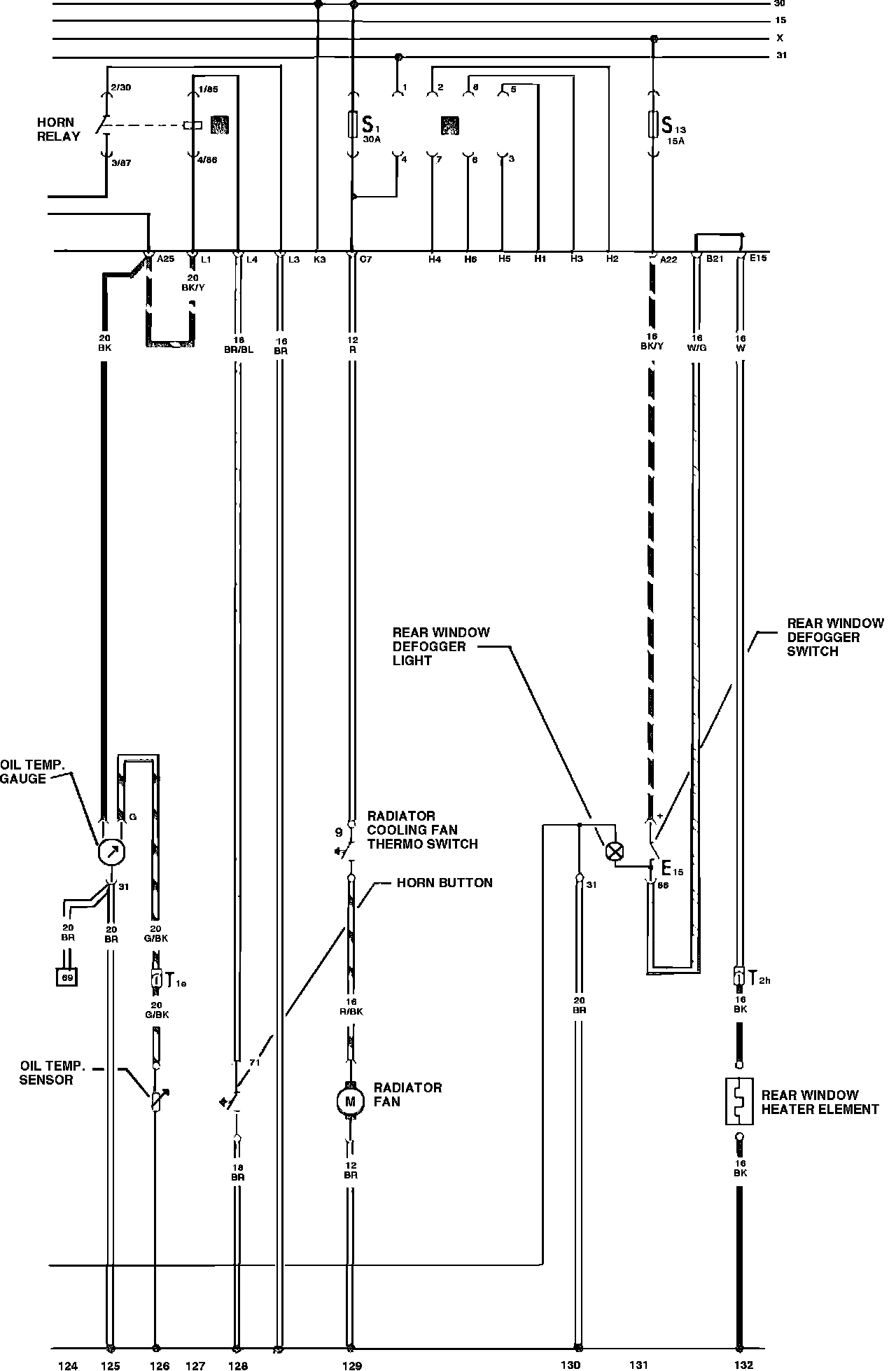

Fig. 35i Cooling Fan, Oil Temperature Gauge & Rear Defogger:
