Front Seat Backrest - Noise
85VW2 Applies To QUANTUM/JETTA/CABRIOLET1985
Group
72
Subject
Front Seat Backrest
Part Identifier 7219
Key Points
Front seat backrest noise
C
Number
85-01
November 19, 1985
To eliminate front seat backrest noise, the upper spring suspension point must be relocated..
Work sequence
- remove front seat
- remove headrest
- remove backrest from seat
- take out headrest guide tubes, and remove backrest cover
- remove padding

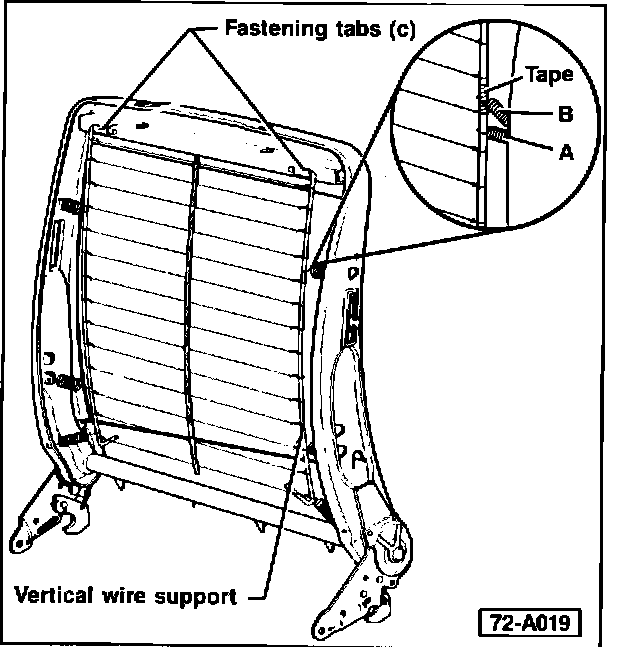

- open fastening tabs (C)
- wrap tape around both vertical wire supports
- move springs from point (A) to the higher point (B)
- close fastening tabs
- spray entire spring assembly with transparent preservative wax part no. AKR 321 M15 4
- reassemble seat components in reverse order of removal
- install seat into vehicle
Labor operation 7219510 = Repair Quality Check
90 T.U. 5 T.U.
