Heater Thermofuse, Resistor - Checking
86VW1Applies To
Golf, Jetta
1985-86
Group
80
Subject
Heater
Part Identifier
Key Points
Thermofuse, checking Resistor, checking
A
Number
86-01
April 21, 1986
CAUTION
Before starting to work on any part of electrical system disconnect battery ground strap
Heater motor thermofuse, checking
- remove heater motor

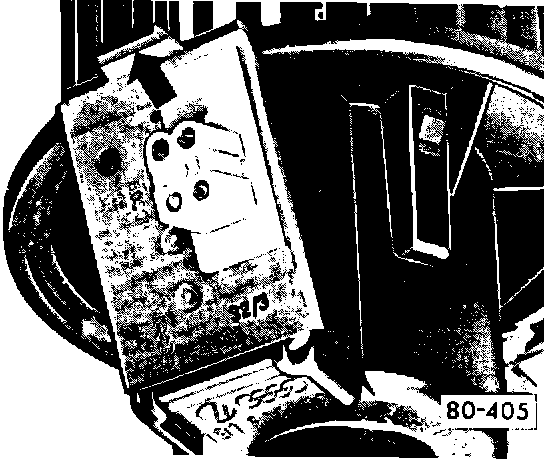

- unclip heater motor connecting plate (arrow)

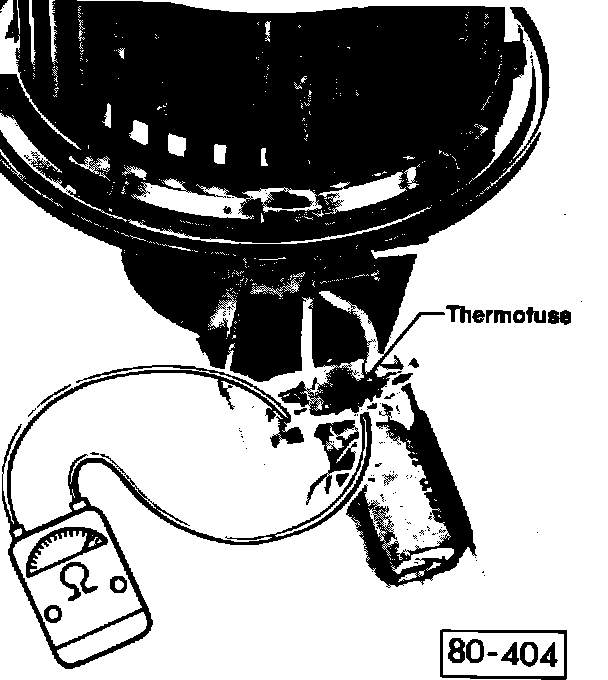

- connect ohmmeter across terminals of thermofuse
^ approx. value 0.0 ohm If display infinity
- replace thermofuse

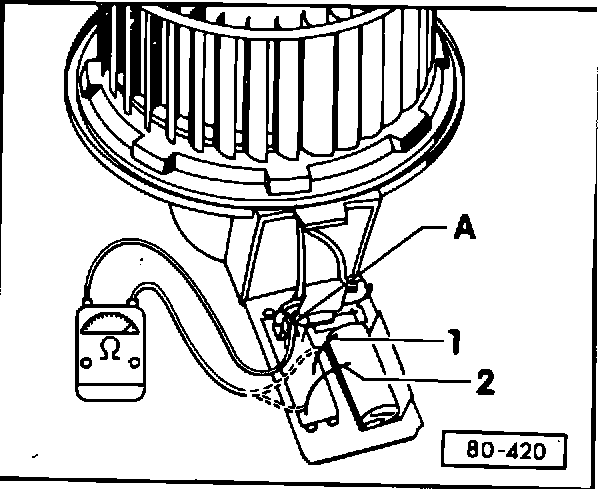

Heater motor resistance, measuring
- connect ohmmeter between A and terminal
^ approx. 3.3 ohms
- connect ohmmeter between A and terminal 2
^ approx. 0.8 ohms If values are not obtained, - replace resistor
