Body Repairs - Replacing Sealing Plugs
85VW2Applies To
GOLF, JETTA
1985/1986
Group
50
Subject
Body Repairs
Part Identifier N/A
Key Points
Replacing sealing plugs
A186
Number
85-05
November 19, 1985
Sealing plugs are used to close body shell openings in the floor plate, trunk floor and wheel well housings..
Sealing plugs with a fusible adhesive band are supplied as replacements.

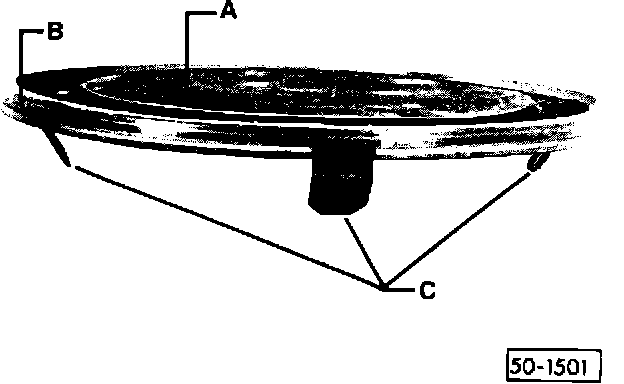

A - Sealing plug B - Fusible adhesive band C - Clips
Work sequence
- clip replacement sealing plug in place

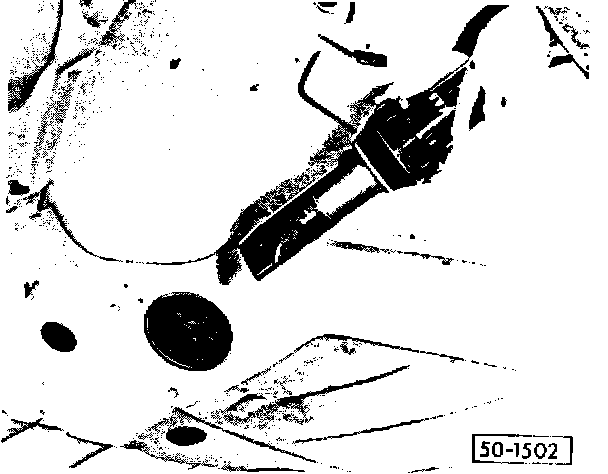

- heat sealing plug with hot air until fusible adhesive liquifies and bonds to body shell
Note
Thoroughly clean sealing area before installing sealing plug. Coat repaired area with cavity preservation sealant.
