A/T - Modified CV Joints, Drive Flanges, Differential
85VW1Applies To GOLF, JETTA
1985
Group
39
Subject
Automatic Transmission 010
Part Identifier N/A
Key Points
Modified constant velocity joints, drive flanges and differential housing covers
A 168
Number
85-01
August 26, 1985
Some vehicles with automatic transmissions have 100 mm diameter constant velocity joints, Drive flanges and differential housing covers have been modified to accommodate this change..
FIGURE 1 - DRIVE FLANGE, DIMENSIONS:
^ Current drive flange a = 90 mm
^ Modified drive flange a = 100 mm

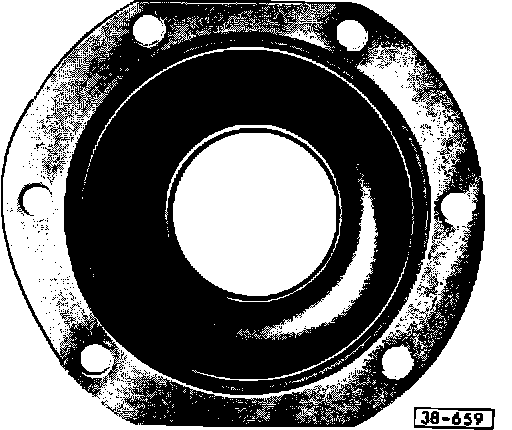

FIGURE 2 - DIFFERENTIAL HOUSING COVER, CURRENT:
^ only install in vehicles with 90 mm drive flange

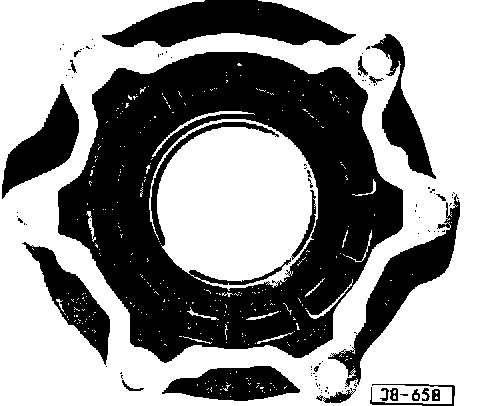

FIGURE 3 - DIFFERENTIAL HOUSING COVER, MODIFIED:
^ install in vehicles having either 90 or 100 mm drive flange
