Instrument Cluster - Identification of Connector Terminals
84VW1Applies To Scirocco
1984
Group
90
Subject
Instrument cluster
Part Identifier N/A
Key Points
Identification of connector terminals
A-81
Number
84-01
January 16, 1984

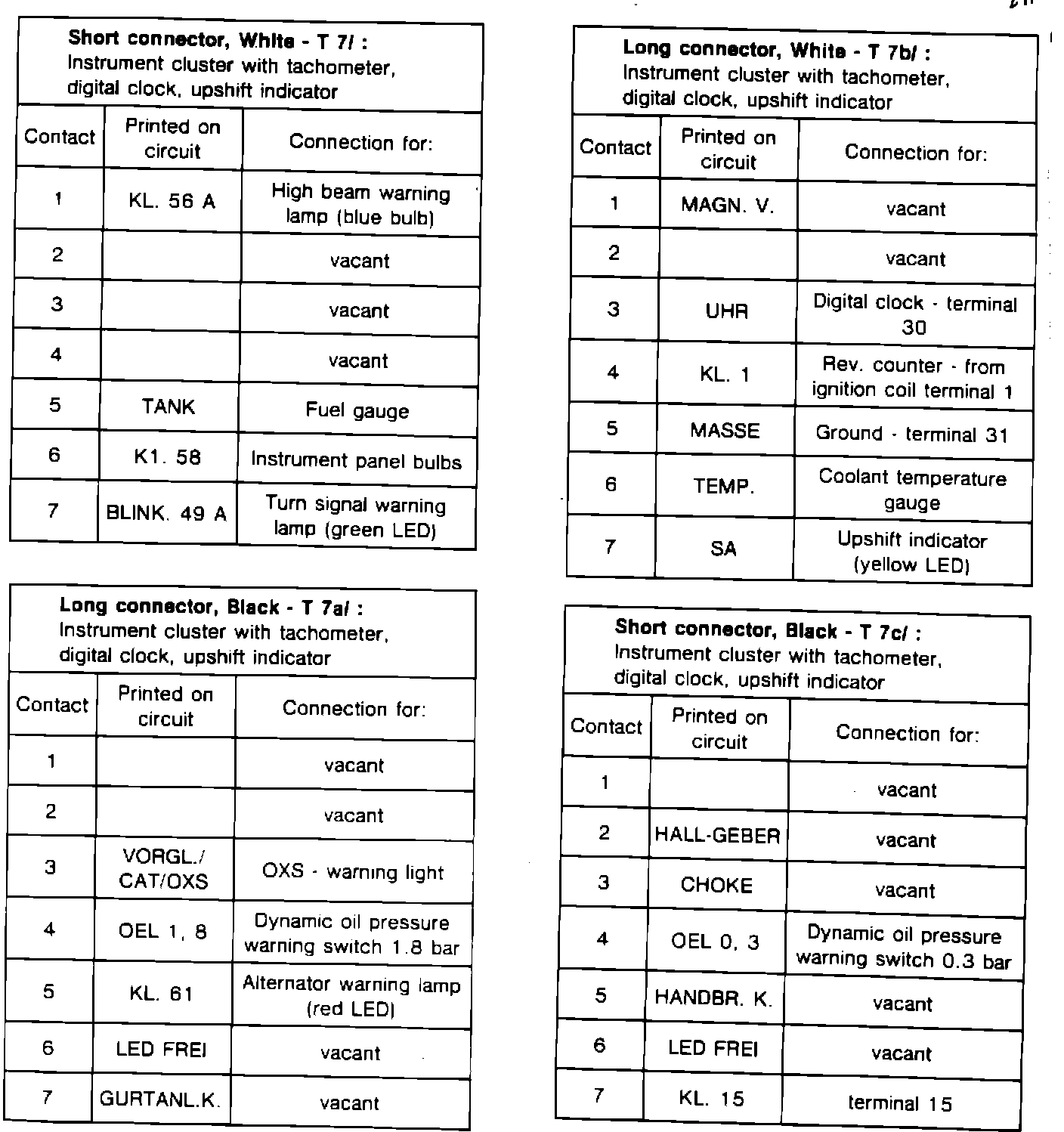

Connection Terminals Identification

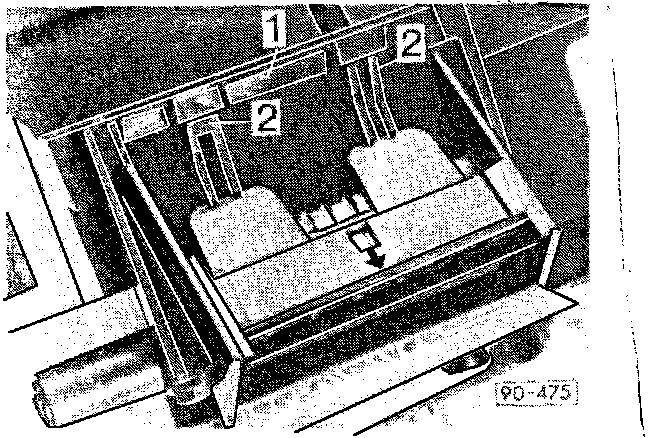

FIGURE 1 - REMOVING CONNECTOR HOUSING FROM INSTRUMENT CLUSTER:
- pry plastic bar (Fig. 1, 1 ) over retaining lugs (2) with screwdriver
- pull housing off (with printed circuit) in direction of arrow

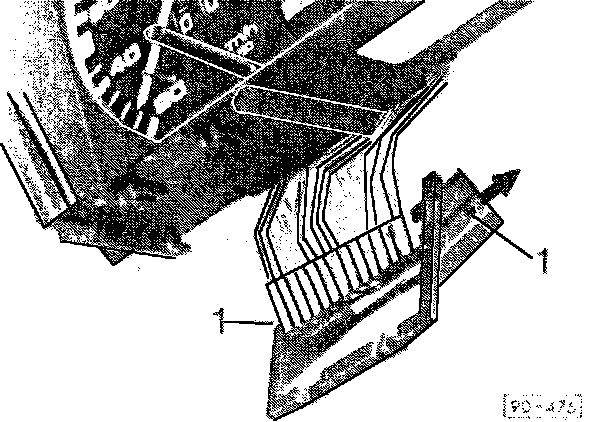

FIGURE 2 - REMOVING CONNECTOR HOUSING FROM PRINTED CIRCUIT:
- squeeze retaining lugs of connector housing (Fig. 2, 1) and slide off printed circuit in direction of arrow
