Injection Pump Gear, Removing

Injection Pump Gear, Removing




- loosen mounting bolt for injection pump gear (do not remove bolt entirely)

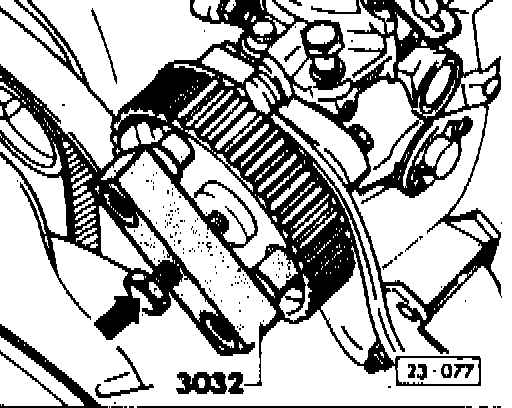

- preload injection pump gear with puller
- loosen injection pump gear from pump shaft by lightly tapping on backside of puller
- remove mounting nut and injection pump gear
