Clutch Linkage - Removing Over-Center Spring

84VW03
Applies To Quantum

Group


30
Subject

Clutch Linkage

Part Identifier
Key Points

Removing over-center spring


A-73
Number

84-01

June 26, 1984

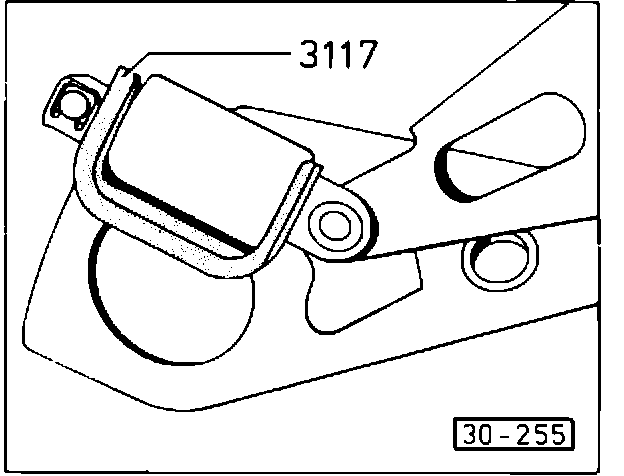

Use special tool 3117 when removing clutch over-center spring.


Work sequence

- place tool 3117 over spring
- remove circlips
- remove pins
- remove spring together with tool

- carefully remove spring from tool
- reverse sequence to install spring
