Home
>>
Volkswagen
>>
1984
>>
Quantum L4-1588cc 1.6L DSL SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Backup Lamp
Backup Lamp

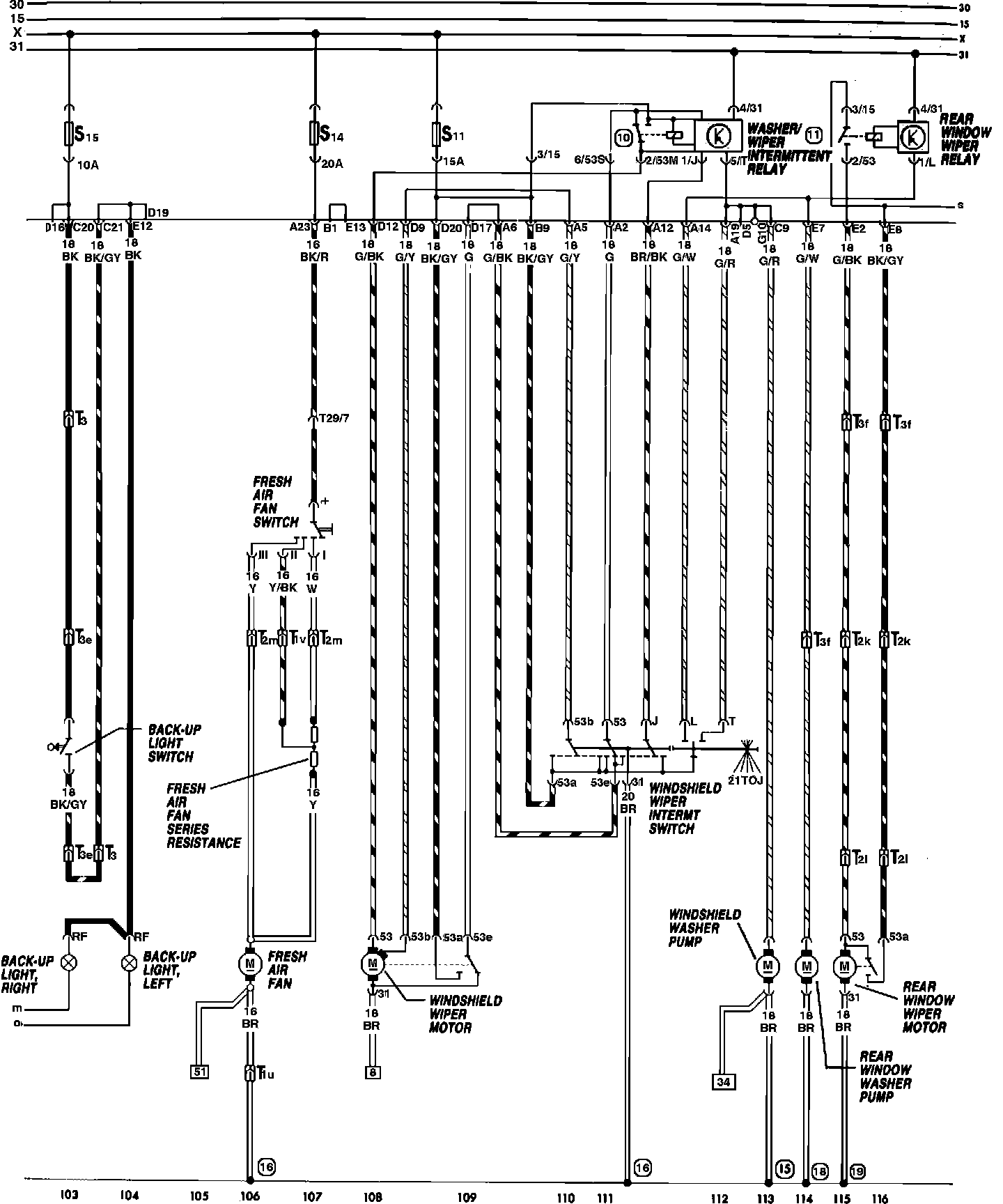

Back-Up, Fresh Air Fan & Windshield Wiper/Washer:
