Fuel Injection Pump - Replacement Instructions

83VW01
Applies To
Turbo Diesel (All)
Group


23
Subject:

Fuel Injection Pump

Part Identifier 23 29
Key Points

Replacement instructions

C
Number

83-01

January 14, 1983
Replacement Diesel injection pumps are supplied with the breather-to-boost-pressure enrichment housing closed... This seal must be opened after installation as follows:

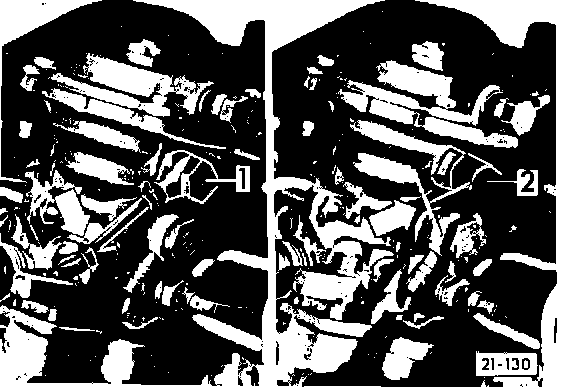

On pump (left) with breather screw (1) and breather hose, - remove hose clip (arrow)

On pump (right) with breather screw and rubber cap (2),

- cut tip off hose (dotted line)
