Home
>>
Volkswagen
>>
1983
>>
Rabbit Convertible L4-1715cc 1.7L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Front View
Front View

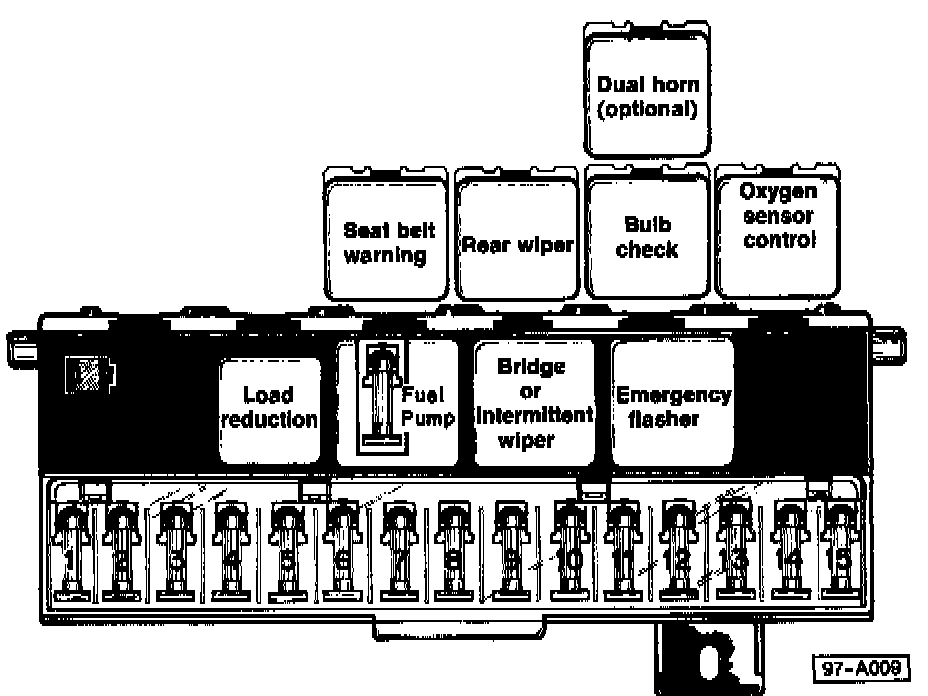

Fuse And Relay Locations:
