Quantum L5-2144cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

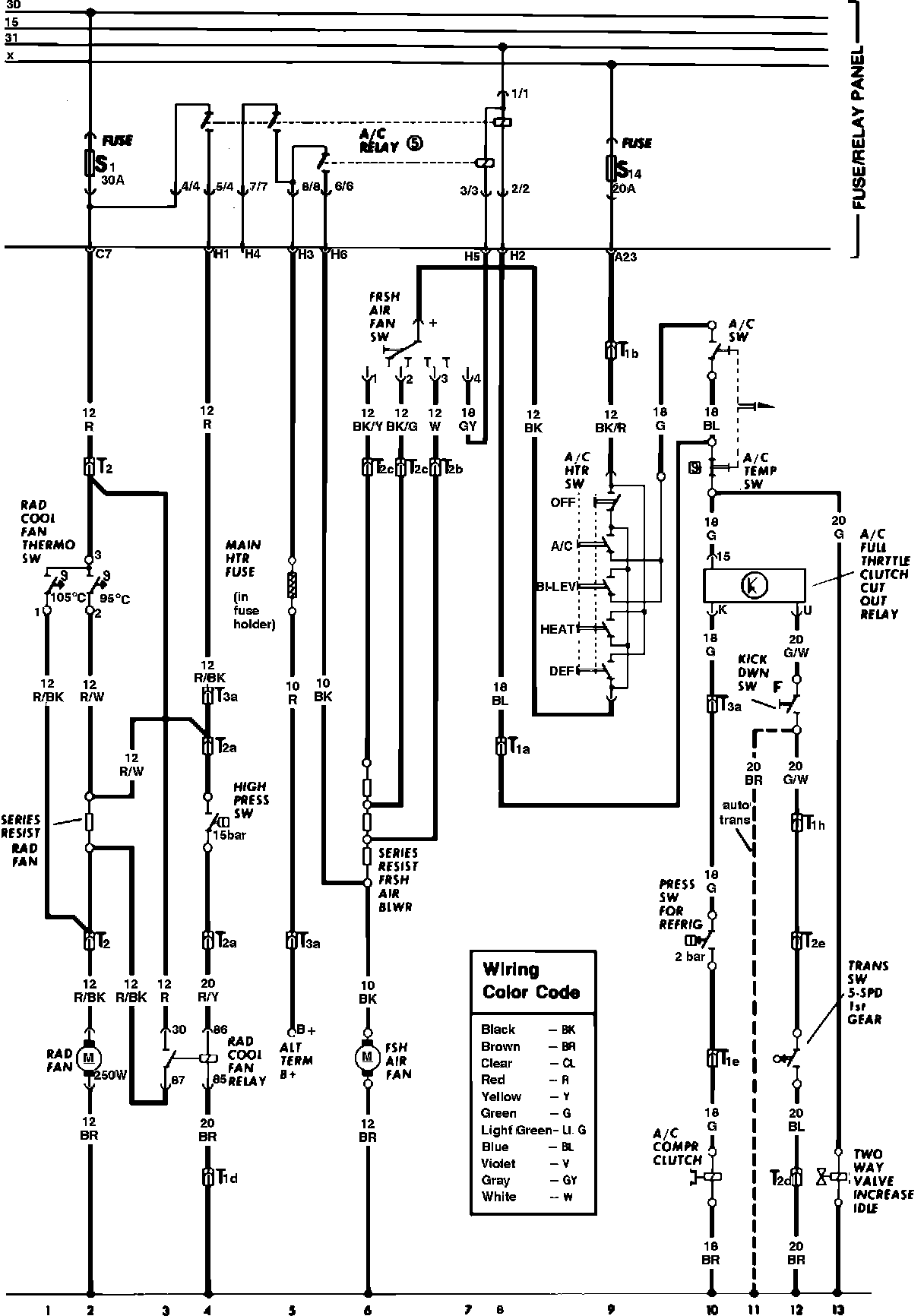

Air Conditioning, Cooling Fan & Heater:
