Starter - Will Not Operate
83VW01Applies To QUANTUM
DIESEL TURBO DIESEL 1983
Group
27
Subject
Starter
Part Identifier N/A
Key Points
Starter Will Not Operate
A - 79
Number
83-03
December 23, 1983
If the starter does not work, check and repair the following:
^ Battery voltage is OK
^ Battery and starter connections are not corroded
^ There is current at terminal 50 of starter when ignition key is turned to start position
If tests prove OK, the problem may be a broken starter bearing housing
Prevent recurrence of this problem by installing a starter support when replacing starter
Starter support P/N 068-911-061 A attaching parts:
Nuts N010 006.8 (2) starter support
Washers N011 666.3 (2) to starter
Bolt N010 239.11 (1) starter support
Washer N900 333.01 (1) to engine block
Bolt N010 210.7 (1) alternator ground wire
Washer N900 333.01 (1) to starter support

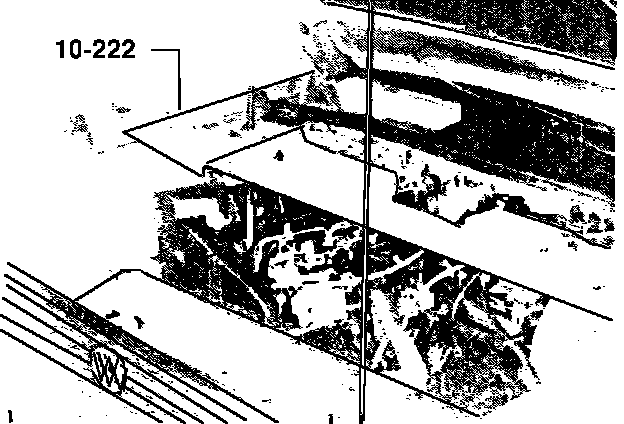

FIGURE 1 - ENGINE SUPPORT:
Work Sequence
- Remove battery ground (-) cable
- Install engine support 10-222

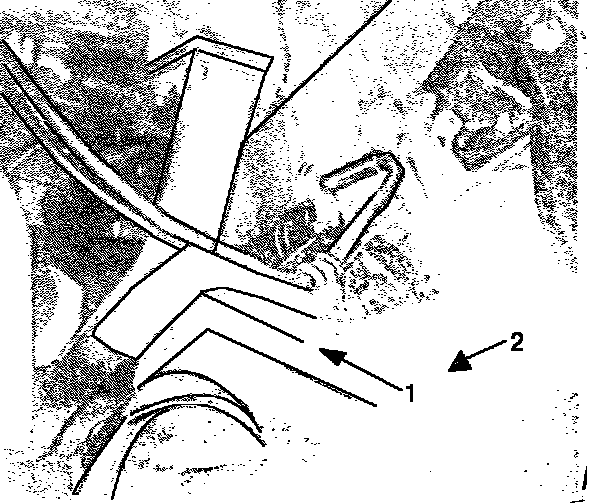

FIGURE 2 - STARTER AND ENGINE MOUNTS:
- Remove engine mount (Fig. 2, arrows 1 and 2)
- Remove starter wiring and starter
- Remove alternator ground wire (Fig. 2, arrow 4)
- Install new starter
^ 40 N-m (29 ft.lbs.)
- Attach starter wires
- Fasten starter support to starter
^ Do not tighten
- Fasten starter support to engine block
^ Do not tighten
- Tighten starter support nuts at starter
^ 8 N-m (6 ft.lbs.)
- Tighten starter support to engine block
^ 25 N-m (18 ft.lbs.)
- Attach alternator ground wire to starter support
- Install engine mounts (Fig. 2, arrows 1 and 2)
^ Mount 2 to engine block 45 N-m (34 ft.lbs.)
^ Nut 3 35 N-m (26 ft.lbs.)
- Attach battery ground (-) cable
