Hood Sound Absorber - Improved Retention
83VW01Applies To
DASHER, QUANTUM
ALL DIESEL/TURBO DIESEL
1979-1983 Models
Group
55
Subject:
Hood sound absorber
Part Identifier N/A
Key Points
Installing screw/washer to retain sound absorber
C
Number
83-01
August 22, 1983
To reduce any chance of accelerator cable interference, installation of an additional screw/washer is necessary in location specified (arrow) to assure proper retention of the sound absorber
Note
This screw/washer is being installed as of production date: 2/83
VIN 3 DE 102 109
Parts required screw, Part No... N 13 968.1 washer, Part No. N 11 692.2

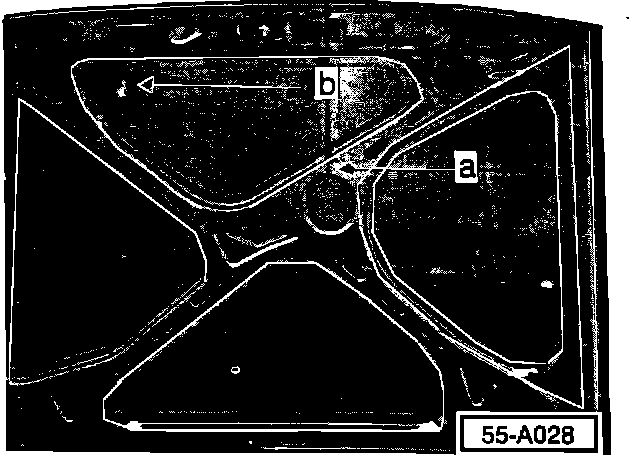

- install screw through sound absorber into hood brace at mounting point:
^ a = 550 mm (21 11/16 in.)
^ b = 335 mm (13 3/16 in.)
CAUTION
Part numbers are for reference only. Always check with your Parts Department for latest parts information
