Scirocco

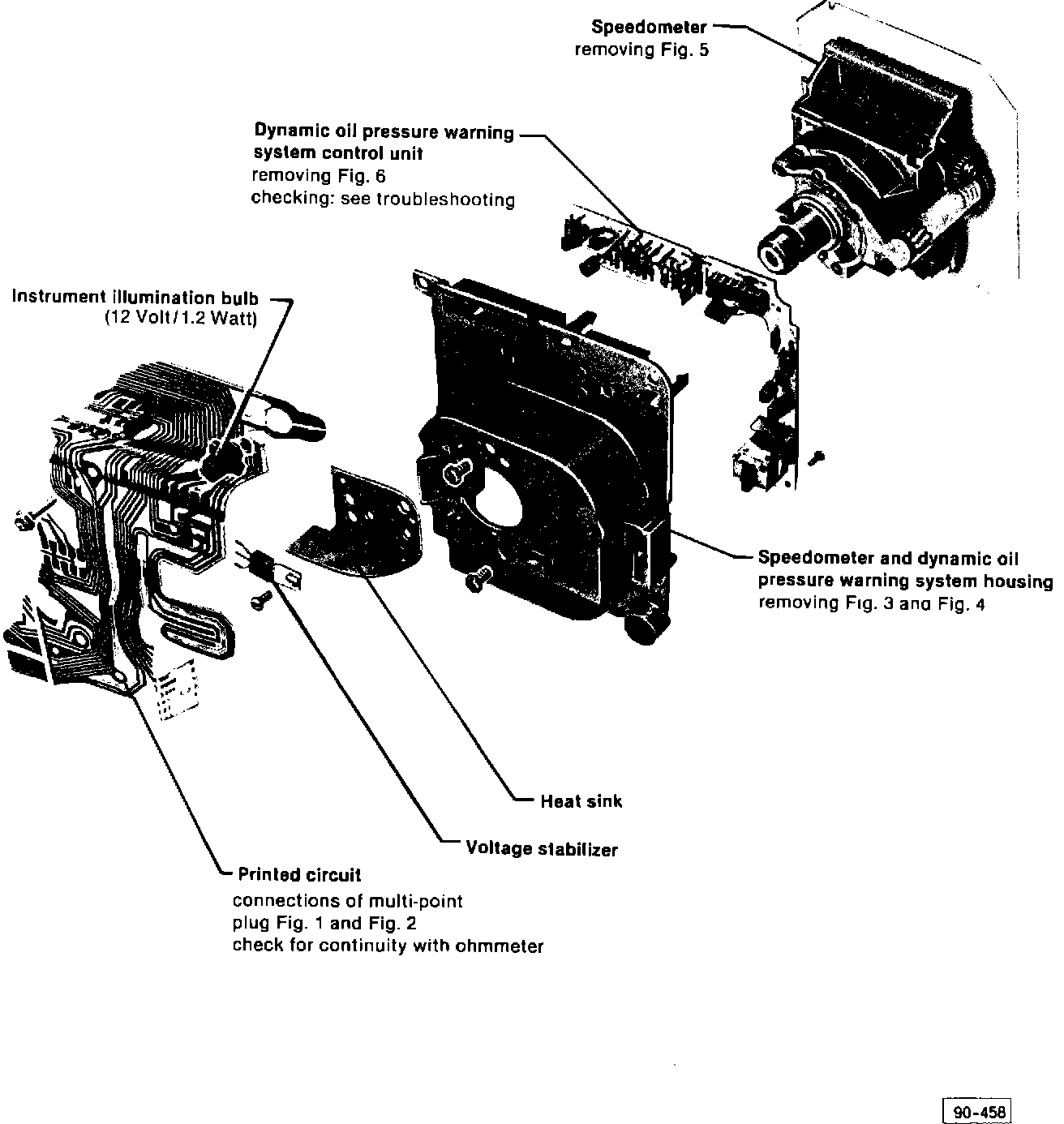

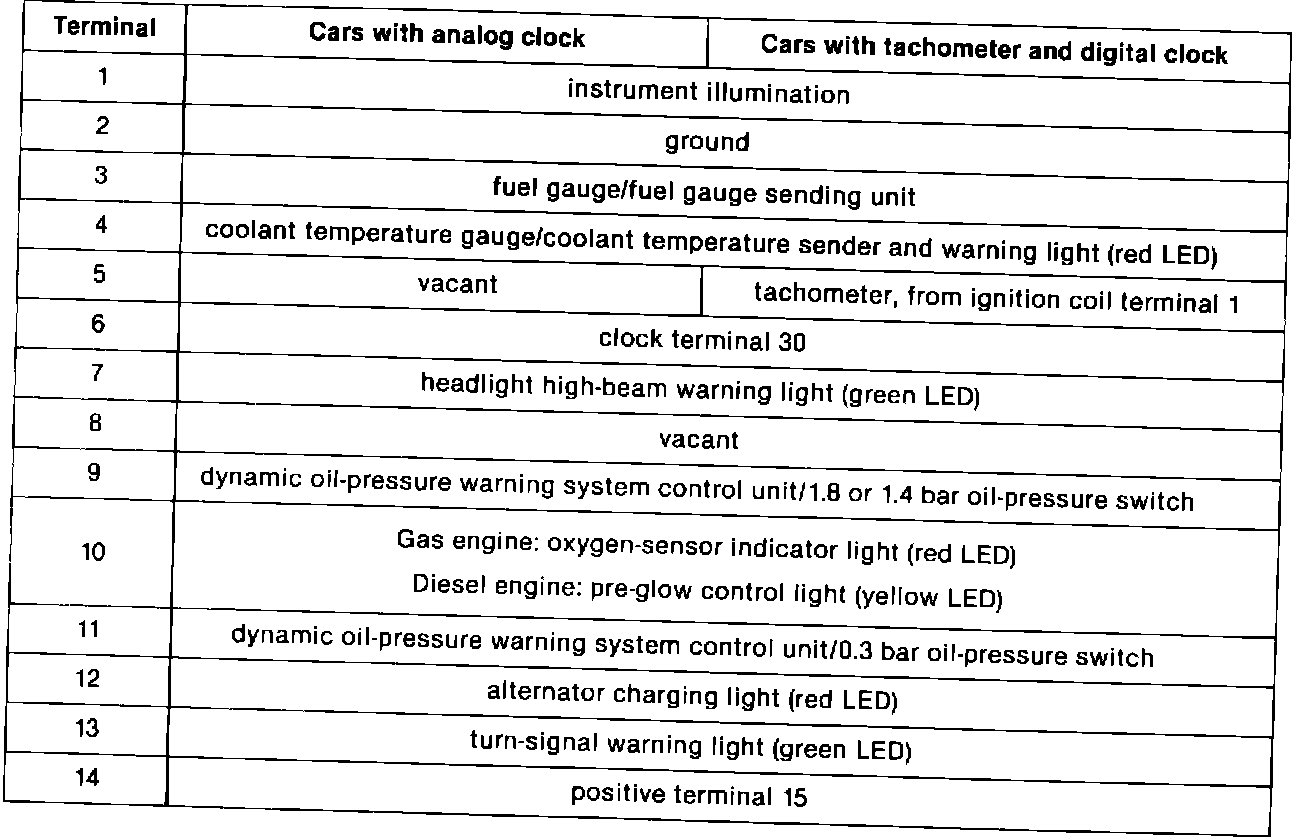

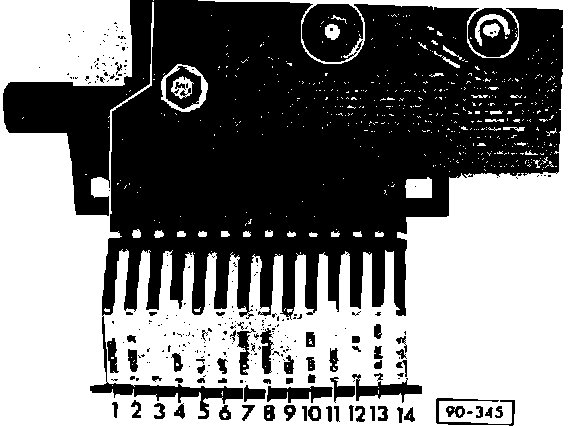

FIGURE 1 - TERMINALS IN 14-POINT CONNECTOR:

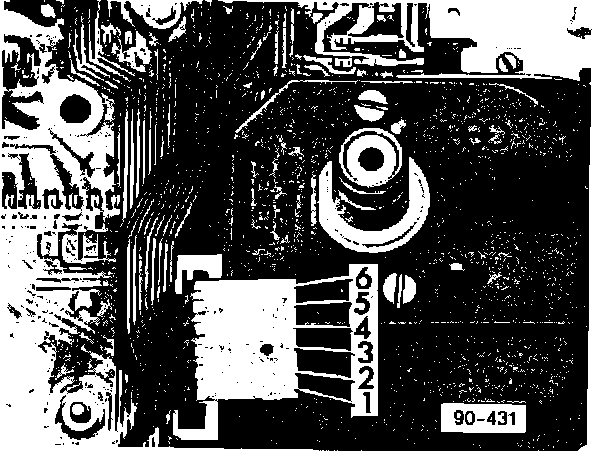

FIGURE 2 - TERMINALS IN 6-POINT CONNECTOR:

1 - not used 2 - not used 3 - not used 4 - gearshift indicator light (LED) 5 - not used 6 - speedometer

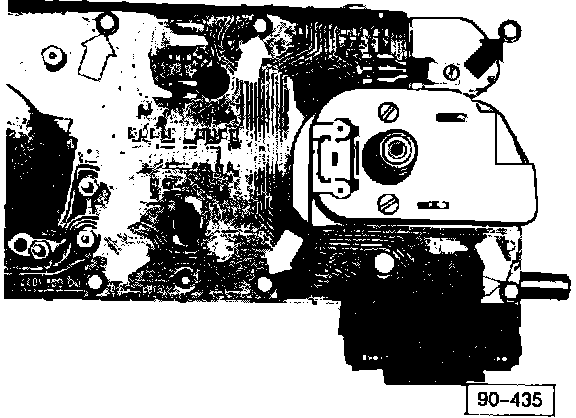

FIGURE 3 - DASHBOARD WITH DIGITAL CLOCK/HOUSING SPEEDOMETER AND DYNAMIC OIL-PRESSURE WARNING SYSTEM CONTROL UNIT, REMOVING:

- remove light bulbs
- remove screws and nuts (arrows) and swing housing to left while removing

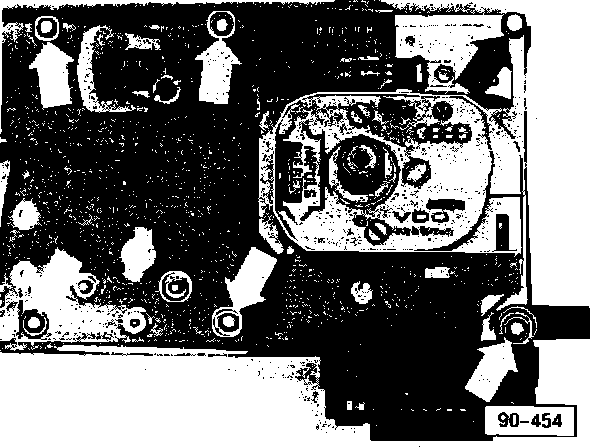

FIGURE 4 - DASHBOARD WITH NORMAL CLOCK/HOUSING FOR SPEEDOMETER AND DYNAMIC OIL-PRESSURE WARNING SYSTEM CONTROL UNIT, REMOVING:

- remove light bulbs
- remove screws (arrows) and swing housing to left while removing

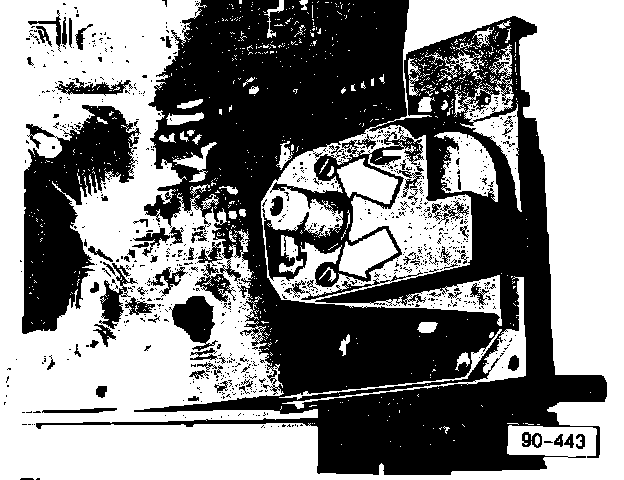

FIGURE 5 - SPEEDOMETER, REMOVING:

- remove screws (arrows) and pull out of housing

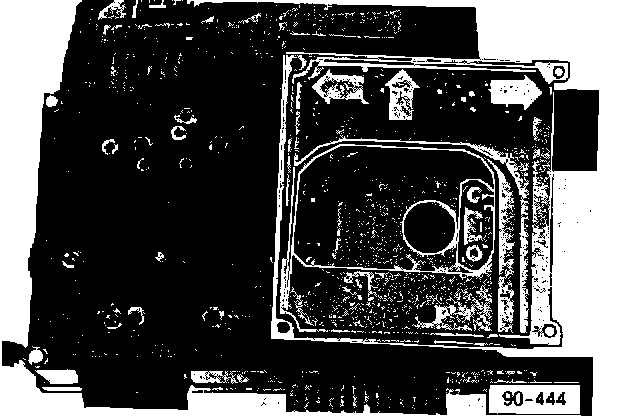

FIGURE 6 - DYNAMIC OIL PRESSURE WARNING SYSTEM CONTROL UNIT, REMOVING:

- remove screw 1 and lift retaining lugs carefully (arrows)
