Home >> Volkswagen >> 1983 >> Quantum L4-1588cc 1.6L DSL SOHC Turbo >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams

Electrical Diagrams

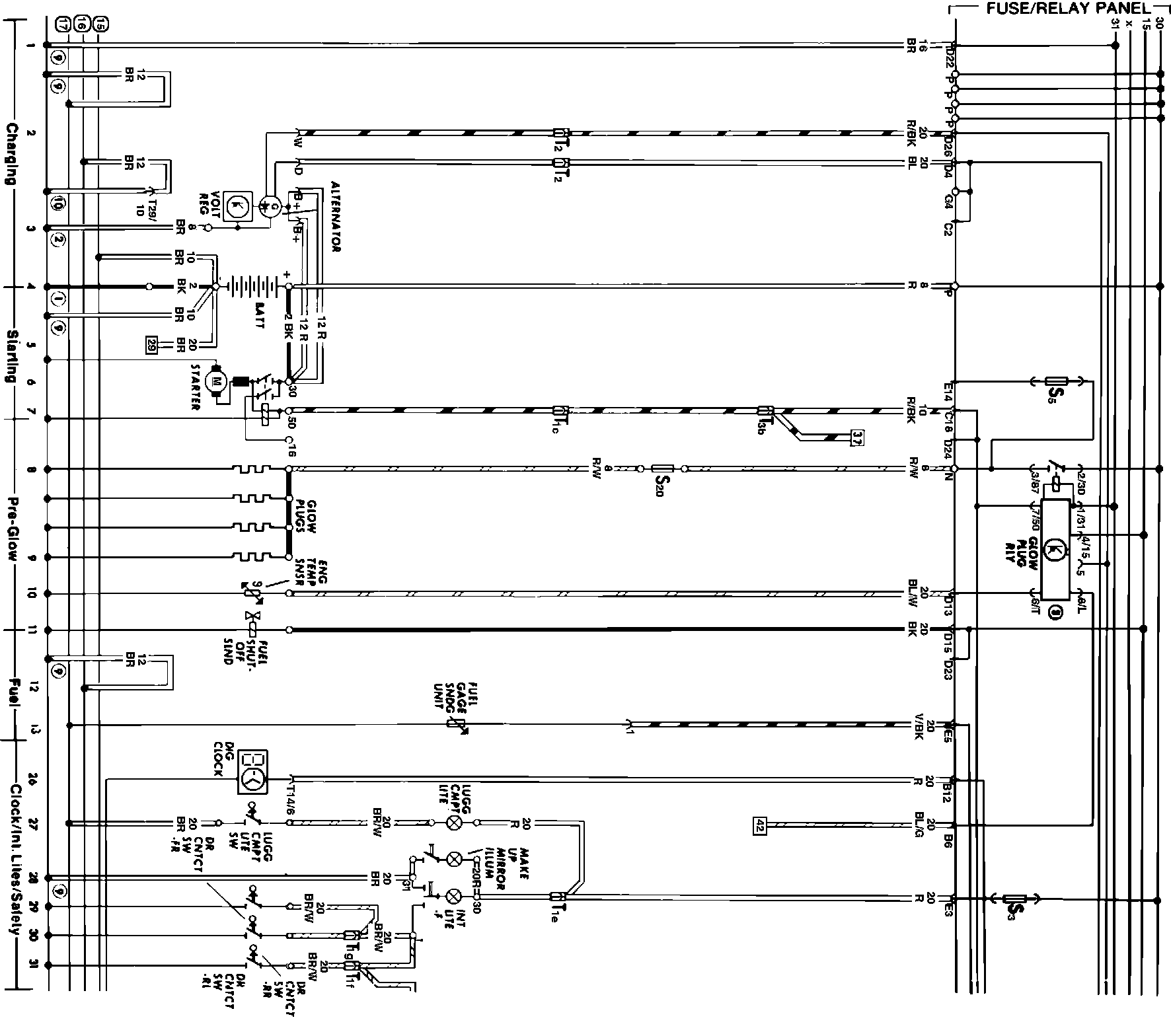

Clock, Fuel Gauge Sending Unit, Glow Plugs, Charging, Starting System, Interior, Luggage Compartment & Safety Lights:
