Home >> Volkswagen >> 1983 >> Quantum L4-1588cc 1.6L DSL SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Turn Signals

Turn Signals

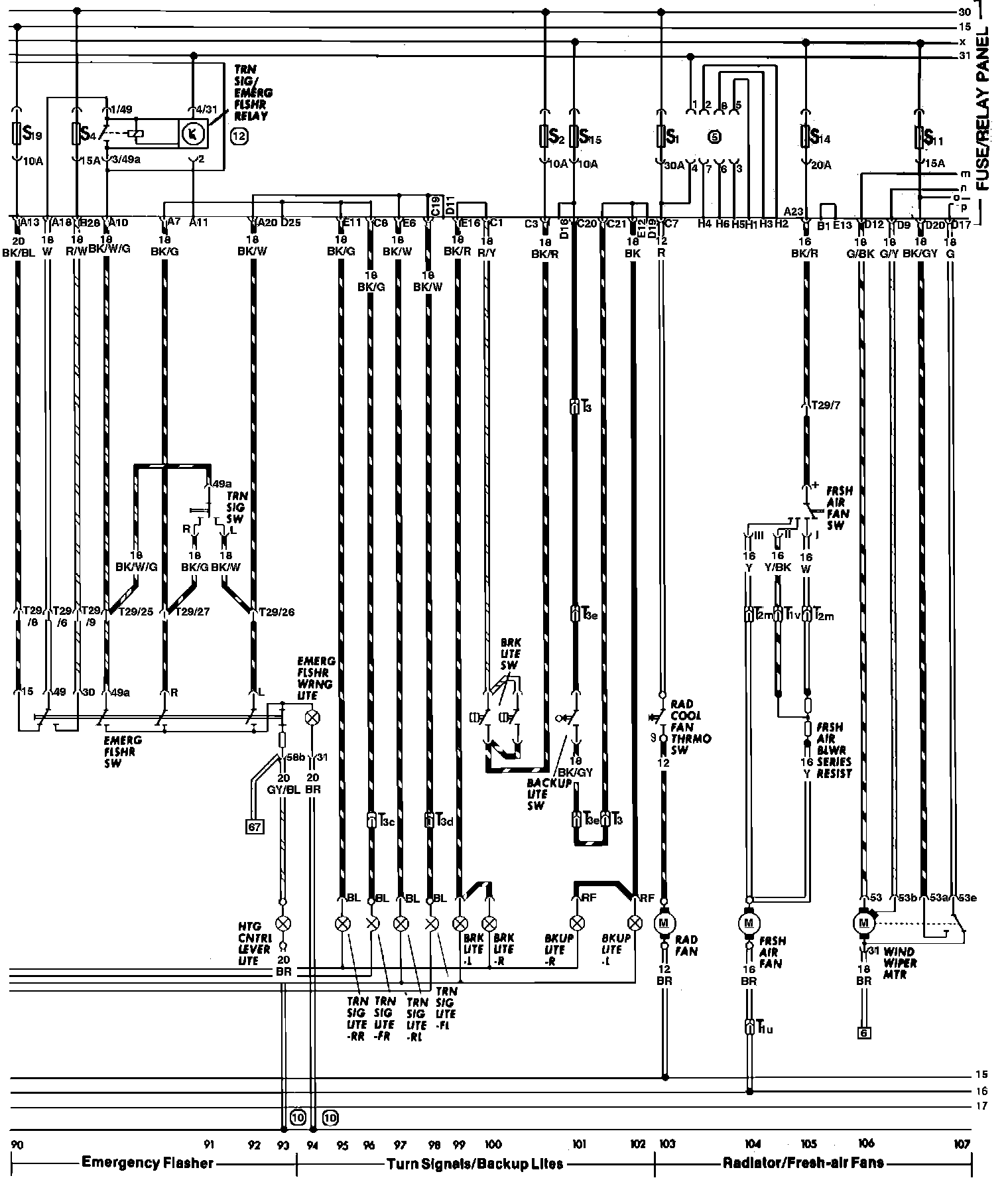

Fresh Air Fan, Back-Up, Emergency Flasher & Turn Signal Lights:
