Volkswagen
>>
1983
>>
Jetta L4-1588cc 1.6L DSL SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Lubrication
>>
System Diagram
System Diagram

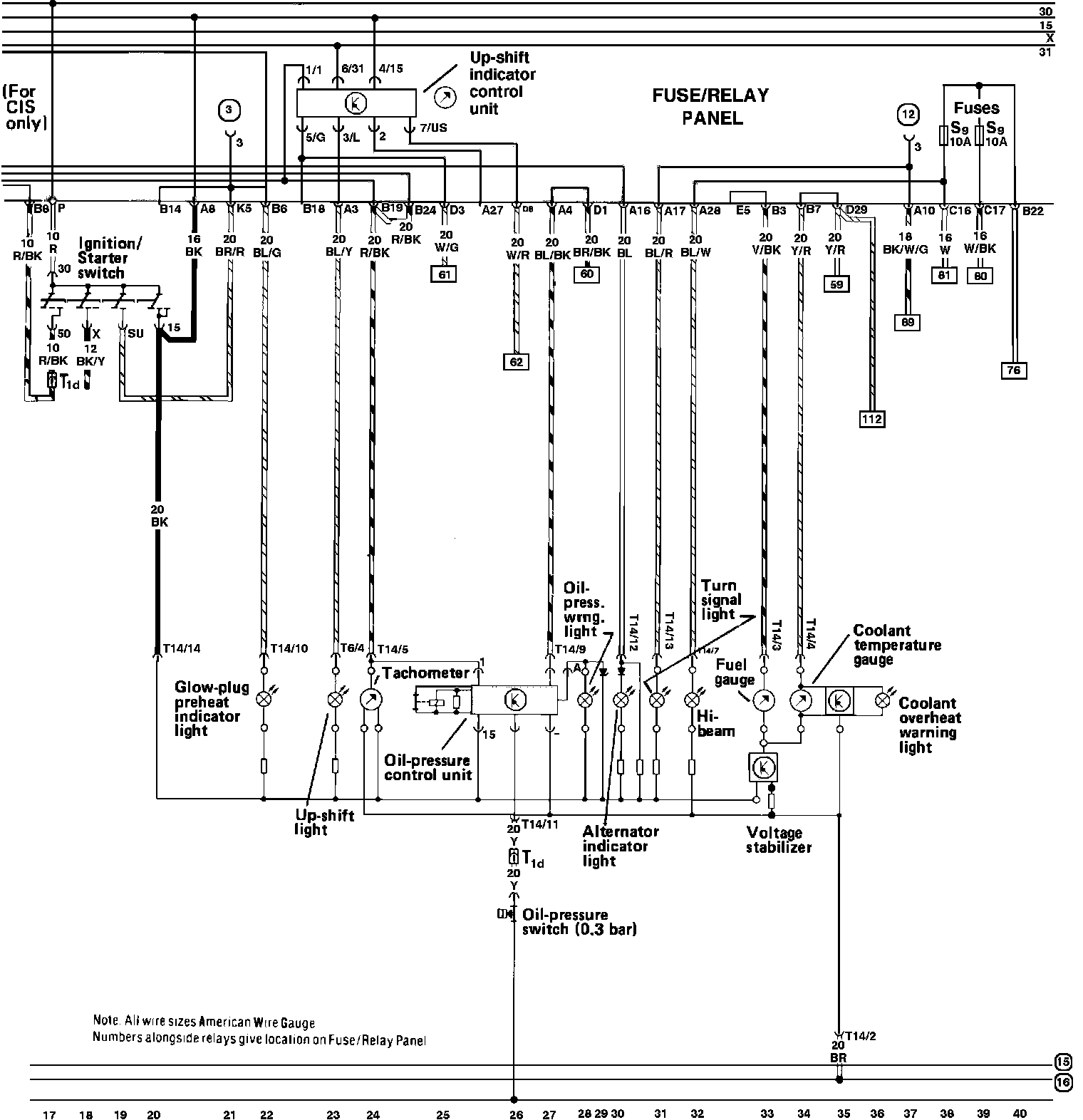

Fuel Gauge, Oil Pressure Control, Tachometer, Upshift Indicator, Ignition & Starting Switch:
