Windshield Washer Reservoir: Service and Repair

Windshield Washer System Reservoir, Removing And Installing

Removing

- Remove right headlight.

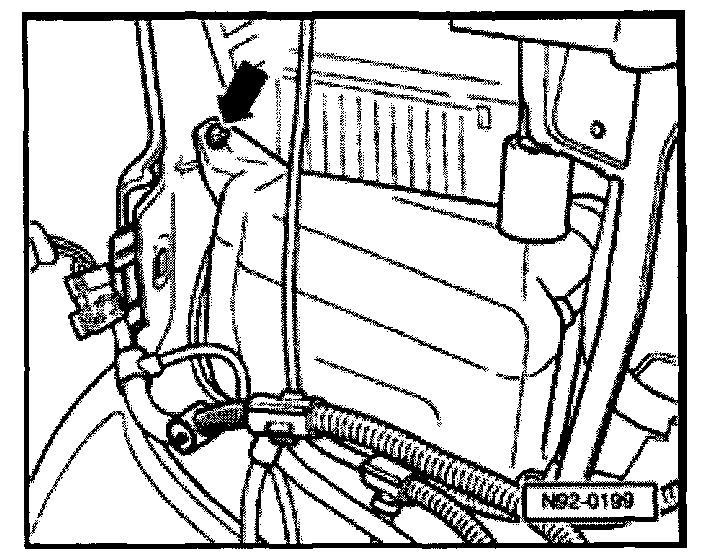

- Loosen securing nut -arrow- (10mm).

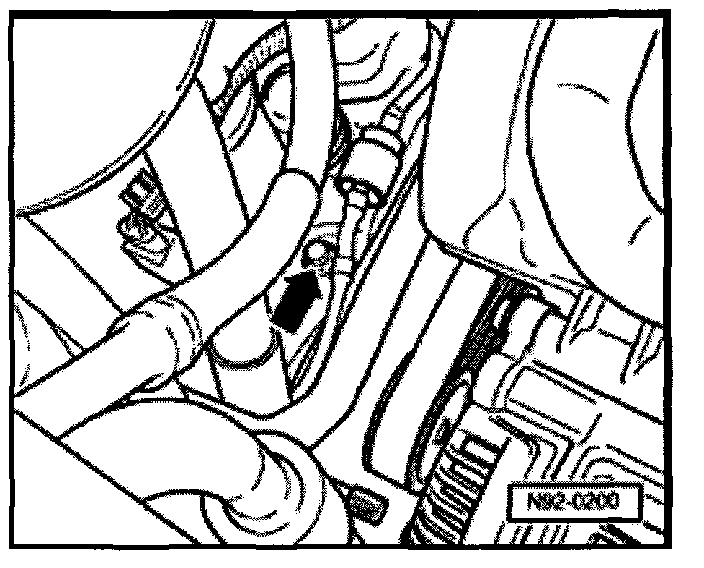

- Loosen securing nut -arrow- (10mm).
- Pull off pump connectors.
- Pull hoses off pump.
- Remove reservoir.

Installing
- Install in reverse order of removal
- Check headlight settings and adjust if necessary.
